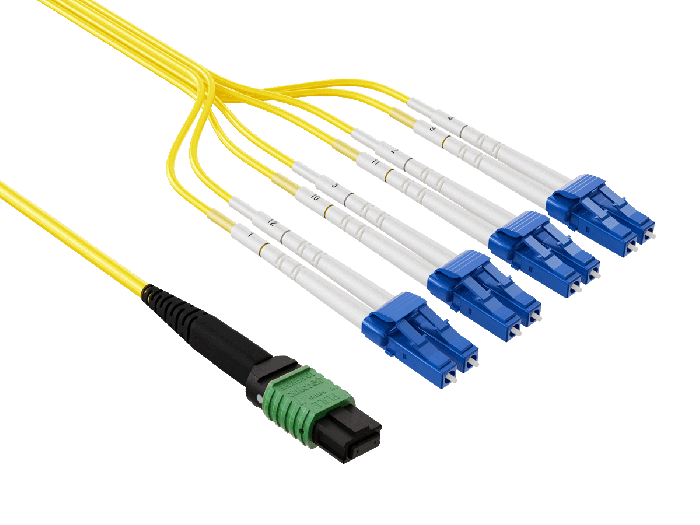

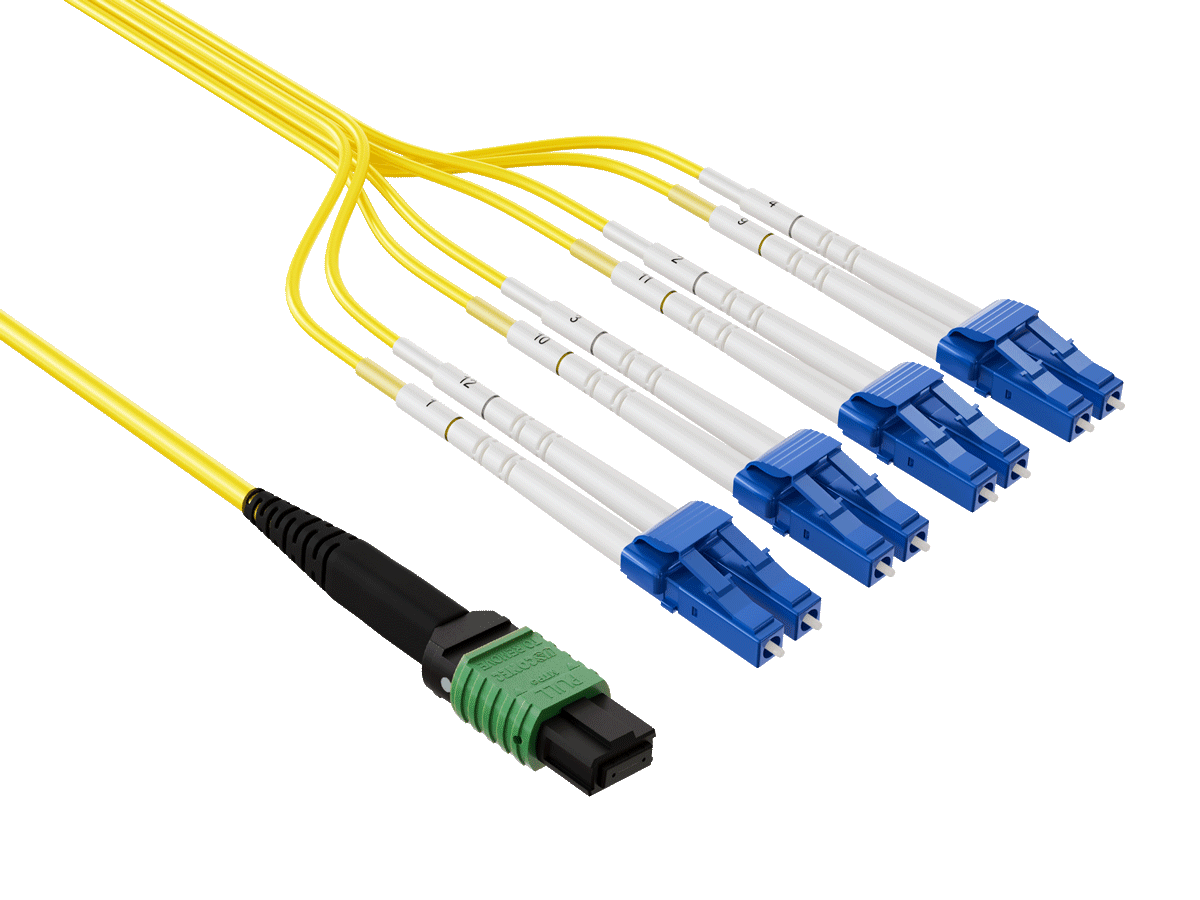

The MTP® OS2 to LC/UPC Duplex 8-Fiber Single-Mode OFNP Breakout Cable Type-B is an advanced fiber optic solution designed to meet the demanding requirements of modern high-density networking environments. This cable combines the benefits of MTP® connectivity with the versatility of LC/UPC breakouts, making it an ideal choice for data centers, enterprise networks, and telecommunications infrastructure.
At the core of this cable lies the premium Corning® SMF-28 Ultra glass, renowned for its exceptional optical performance and reliability. The OS2 single-mode fiber offers superior bandwidth and transmission rates compared to its OS1 counterparts, ensuring optimal signal integrity over long distances. With a low insertion loss of ≤ 0.35 dB for MTP/APC and ≤ 0.20 dB for LC/UPC connections, coupled with high return loss values of ≥ 60 dB and ≥ 50 dB respectively, this cable delivers exceptional performance for critical network applications.

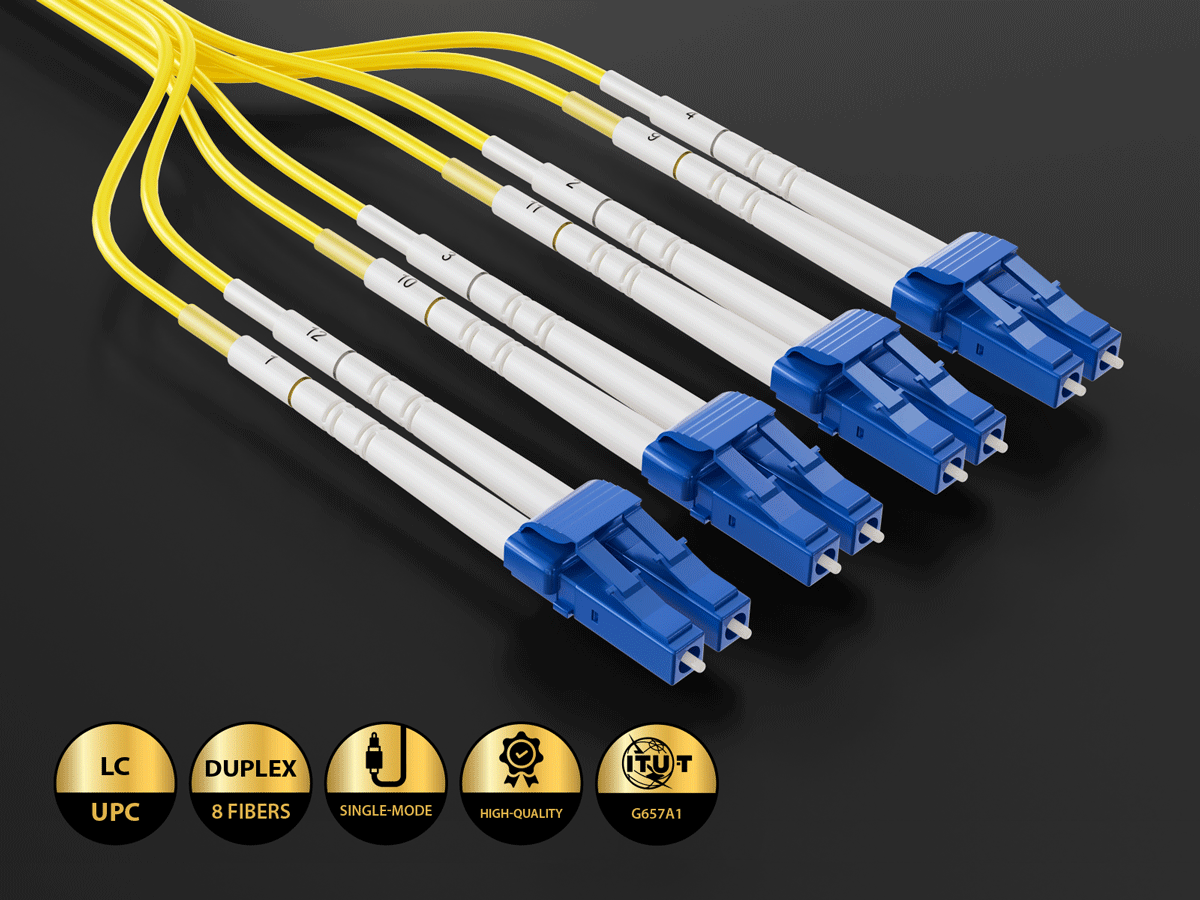

The cable features a robust design with a 3.0 mm jacket diameter for the MTP end and 2.0 mm for the LC/UPC breakouts, providing durability without sacrificing flexibility. The yellow OFNP (Plenum) rated jacket not only aids in easy identification but also ensures compliance with stringent fire safety regulations for installation in plenum spaces.

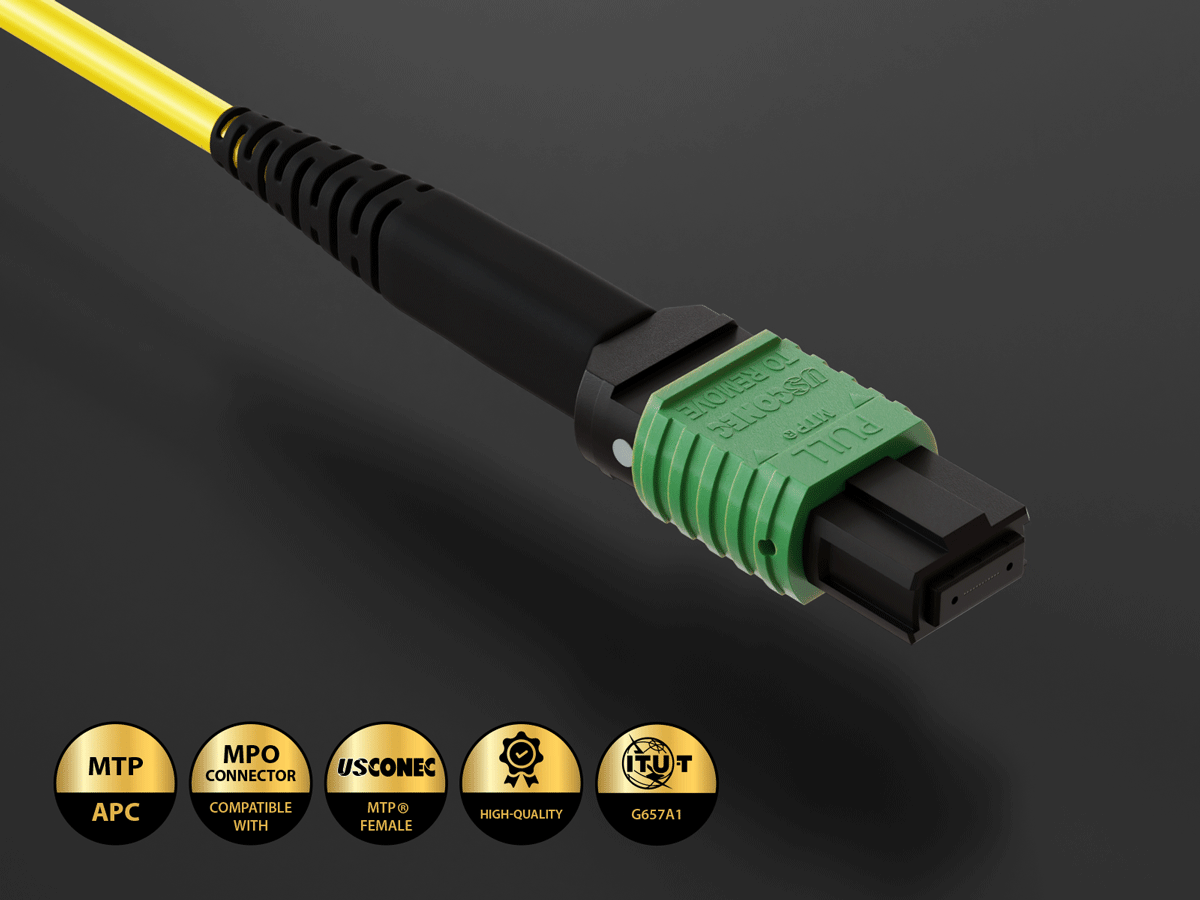

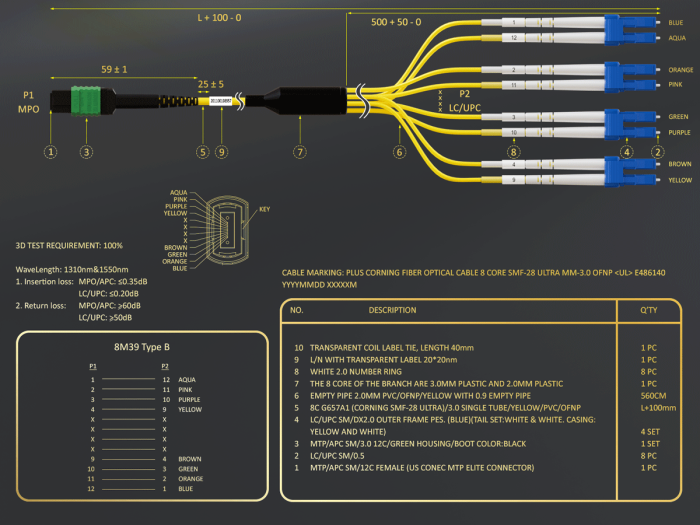

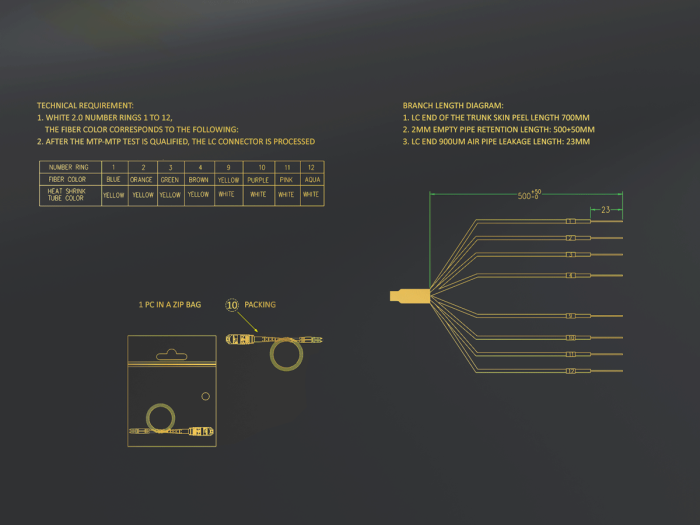

Engineered for versatility, this breakout cable supports a wide range of applications in high-speed networking environments. Its type-B polarity configuration makes it suitable for various network architectures, while the 0.5-meter breakout length offers flexibility in equipment connections. The US Conec MTP® Elite Female connector on one end is fully compatible with MPO standards, featuring an integrated push-pull mechanism for secure and easy connections.
The G.657.A1 fiber grade, compatible with G.652.D standards, ensures excellent bend performance and backwards compatibility with existing network infrastructure. This makes the cable an ideal choice for both new installations and network upgrades.
Quality assurance is paramount in the design and manufacturing of this cable. Each assembly undergoes rigorous 100% 3D testing to guarantee performance consistency. The inclusion of dust protective caps safeguards the connectors from contamination, preserving the cable's optical integrity during installation and maintenance.
For network architects and IT professionals seeking a high-performance, reliable, and future-proof cabling solution, the MTP® OS2 to LC/UPC Duplex 8-Fiber Single-Mode OFNP Breakout Cable Type-B stands out as an excellent choice. Its combination of advanced features, superior performance, and versatile application support makes it an invaluable component in building robust and scalable network infrastructures.
