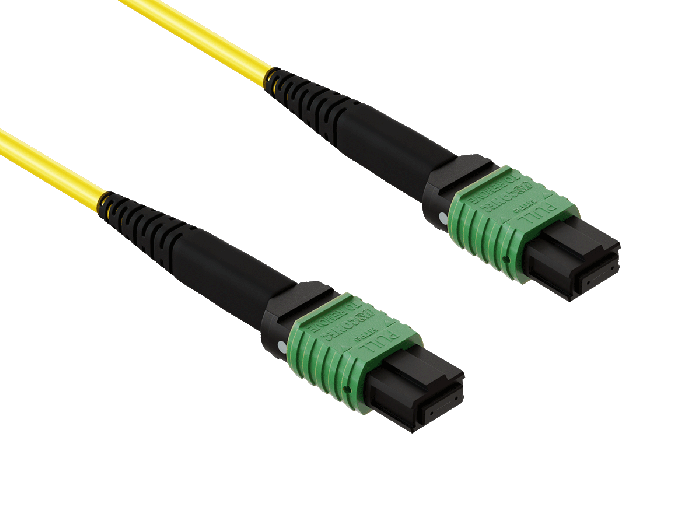

10m OS2 MTP TO MTP/APC 12 Fibers Corning Fiber Trunk Cable Type A Single-Mode 9/125 OFNP Rated, Yellow

The MTP® OS2 Single-Mode 12-Fiber F/F APC Trunk Cable, Type-A, OFNP represents the pinnacle of high-density fiber optic connectivity solutions. Engineered for demanding data center and enterprise network environments, this cable combines cutting-edge MTP® connector technology with the superior performance of OS2 single-mode fiber.

At the core of this cable lies the premium Corning® SMF-28 Ultra glass, renowned for its exceptional optical characteristics. The OS2 9/125 single-mode fiber supports high-bandwidth applications across the 1310nm and 1550nm wavelengths, enabling long-distance, high-speed data transmission with minimal signal degradation.

The Type-A straight-through configuration of this trunk cable simplifies installation and ensures compatibility with a wide range of networking equipment. The APC (Angled Physical Contact) polishing on both female MTP® connectors minimizes back reflections, resulting in improved return loss performance of ≥ 60 dB. This feature is particularly crucial in high-speed, high-bandwidth applications where signal integrity is paramount.

Designed for versatility, this cable excels in various applications, from telecommunications backbones to cloud computing infrastructure. The MTP® connectors, with their innovative push-pull mechanism, facilitate quick and secure connections while allowing for high-density deployments. This design significantly reduces installation time and maintenance costs compared to traditional single-fiber connectors.

Safety and compliance are at the forefront of this cable's design. The yellow OFNP (Plenum) rated jacket meets stringent fire safety standards, making it suitable for installation in air handling spaces. This feature not only ensures compliance with building codes but also contributes to overall network infrastructure safety.

The cable's construction prioritizes durability and performance. With a low insertion loss of ≤ 0.35 dB, it ensures efficient light transmission across the network. The 3.0 mm outer diameter jacket provides robust protection for the fibers while maintaining flexibility for ease of installation in tight spaces.

Compatible with both G.657.A1 and G.652.D fiber standards, this trunk cable offers excellent bend performance without sacrificing long-distance transmission capabilities. The included dust protective caps safeguard the precision-engineered connectors during transport and installation, maintaining the cable's performance integrity.

For network architects and data center managers seeking a future-proof, high-performance fiber optic solution, the MTP® OS2 Single-Mode 12-Fiber F/F APC Trunk Cable delivers unparalleled connectivity. Its combination of advanced features, robust construction, and versatile applications makes it an indispensable component in building scalable, high-speed network infrastructures poised to meet the evolving demands of data-intensive operations.
