15m OM4 MPO TO MPO 12 Fibers Corning Fiber Trunk Cable Type B Multimode 50/125 OFNR Rated, Aqua

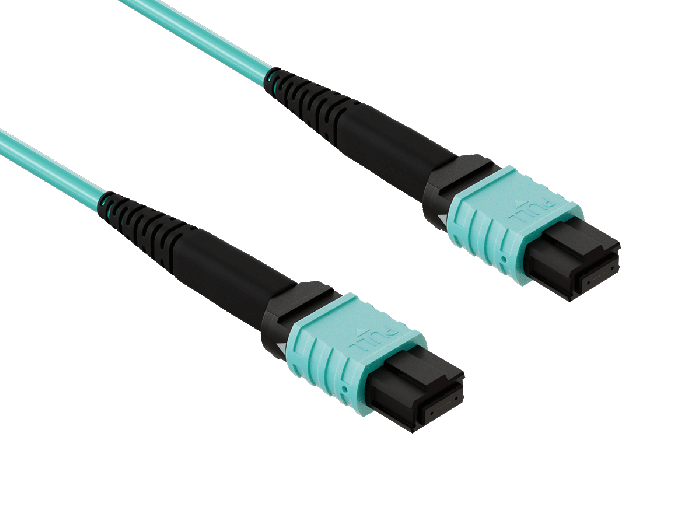

The OM4 MPO 12-Fiber Multimode Trunk Cable Type B is an advanced optical networking solution designed to meet the demanding requirements of modern data centers and telecommunications infrastructure. This high-performance cable features MPO (Multi-fiber Push-On) female connectors on both ends, providing a robust and reliable connection for high-density fiber optic networks.

Engineered with Corning® glass, this OM4 cable boasts a 50μm core and 125μm cladding, delivering superior optical performance. The cable's impressive Effective Modal Bandwidth of 4700 MHz/km at 850nm enables it to support 10Gb transmissions up to 550 meters and 40Gb/100Gb transmissions up to 150 meters. This exceptional bandwidth capability ensures that your network can handle the most data-intensive applications with ease.

The Type B (reversed) polarity configuration, with key-up to key-up orientation, makes this trunk cable ideal for specific network architectures that require such polarity. Its compatibility with SFP+, QSFP, and QSFP+ transceivers allows seamless integration into 10G, 40G, and 100G network environments, providing the flexibility needed for evolving infrastructure demands.

Durability and safety are paramount in the design of this cable. The OFNR (Riser) rated aqua jacket not only provides clear identification but also ensures compliance with building codes for vertical runs between floors. This riser-rated construction offers enhanced fire resistance, making it suitable for use in a wide range of commercial and residential settings.

Quality assurance is a top priority, with each cable undergoing rigorous testing before leaving the factory. The low insertion loss of ≤ 0.35 dB and high return loss of ≥ 20dB guarantee optimal signal integrity, minimizing data loss and ensuring clear, reliable transmissions. A detailed test report is included with each cable, providing peace of mind and documentation of its performance capabilities.

The OM4 MPO trunk cable excels in various applications, from connecting fiber transceivers and optical fiber adapter panels to linking MPO cassettes in high-density patching scenarios. Its versatility makes it an invaluable component in building scalable and future-proof network infrastructures.

Designed for ease of use, this cable comes equipped with dust-protective caps to maintain the cleanliness of the connectors during installation and storage. The UL listing further attests to its adherence to safety standards, making it a trustworthy choice for critical network installations.

By choosing this OM4 MPO 12-Fiber Multimode Trunk Cable, network professionals can ensure they have a reliable, high-performance solution that meets the exacting standards of today's data-driven world while providing the scalability needed for tomorrow's technological advancements.
