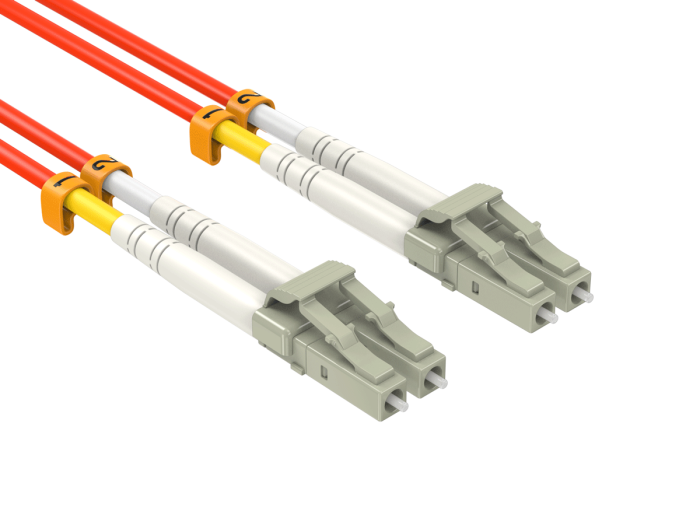

1m OM1 LC to LC UPC Duplex Corning Fiber Optic Cable MultiMode 62.5/125 OFNR Rated, Orange

1m OM1 LC to LC UPC Duplex Corning Fiber Optic Cable MultiMode 62.5/125 OFNR Rated, Orange

The OM1 62.5/125 LC/LC Multi-Mode Fiber Optic Cable is a reliable networking solution designed for short-range, high-speed data transmission, particularly in environments maintaining legacy OM1 systems. This cable excels in applications ranging from fast Ethernet and fiber channel to gigabit Ethernet and ATM networks, offering consistent performance and compatibility for various networking needs.

At the core of this cable's design is the high-quality multi-mode fiber with a 62.5/125 μm core/cladding diameter, utilizing Corning® glass for optimal performance. This configuration is optimized for short-range data transmission, making it ideal for applications within buildings or small campus environments where signals need to travel shorter distances without degradation.

The cable features LC connectors on both ends, known for their small form factor and reliability in modern network setups. These connectors are particularly suitable for high-density network applications where space is at a premium, such as in crowded server racks or data centers. The LC connector's compact design allows for more connections in limited spaces, maximizing port density and improving overall network efficiency.

Performance is a key attribute of this cable. With an insertion loss of < 0.3 dB and a return loss of > 35 dB, it maintains high signal integrity over its operational range, ensuring reliable data transmission across the network. The UPC (Ultra Physical Contact) polish further minimizes back reflection and signal loss, contributing to the cable's excellent performance.

Safety and compliance are addressed through the cable's OFNR (Riser) rated jacket, which allows for installation in vertical shafts between floors in buildings. This rating ensures enhanced fire safety, crucial for protecting your valuable infrastructure and meeting building codes.

The cable is optimized for use with LED light sources, providing a cost-effective solution for many networking applications. This compatibility makes it an excellent choice for organizations looking to balance performance with budget considerations, especially when maintaining older network infrastructures.

Quality assurance is paramount, with each cable undergoing 100% factory testing. A test report is included in every package, providing verified performance data for your peace of mind.

The cable's physical attributes are tailored for professional use. With a jacket outer diameter of 2.0mm, it strikes a balance between durability and flexibility, facilitating easy routing and management in high-density environments. The industry-standard orange coloration of the jacket enables quick identification of OM1 multi-mode fiber in complex cabling installations.

This OM1 62.5/125 LC/LC Multi-Mode Fiber Optic Cable is suitable for various applications, including enterprise networks, data centers, campus networks, and other environments requiring high-bandwidth, short-range data transmission. It's particularly well-suited for fast Ethernet, fiber channel, gigabit Ethernet, and ATM applications in settings that maintain OM1 standards.

By selecting this cable, network managers can effectively address current bandwidth requirements while maintaining compatibility with OM1-based systems. Its combination of high-density connector design, reliable performance, and adherence to industry standards makes it a practical choice for networking needs across a range of industries and applications, especially in scenarios where maintaining compatibility with existing OM1 equipment is necessary while planning for future upgrades.
