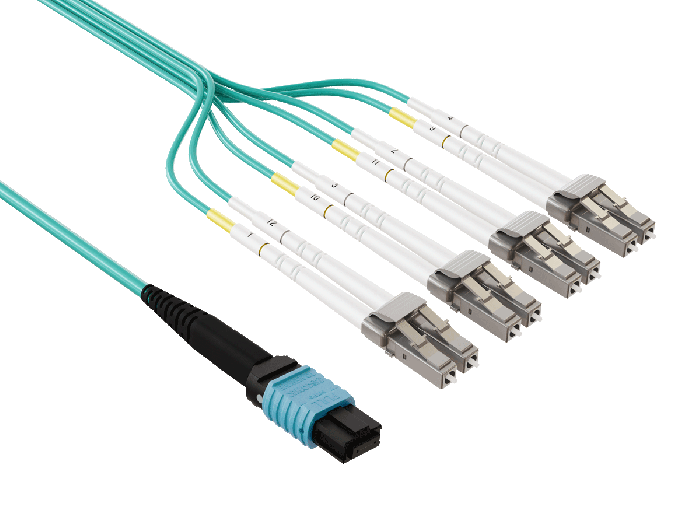

20m OM4 MTP TO 4* LC 8 Fibers Duplex Corning Fiber Breakout Cable Type B Multimode 50/125 OFNP Rated, Aqua

SKU: FB124-4C20

In stock

loader
Volume pricing
Qty
Price
1
$72.99
2
$72.05
20
$71.00
40
$69.50
$72.99
Order today, shipped within 24 hours
Delivery method: USPS Ground Advantage® Shipping time: 2-5 business days depending on your location. This is not a guaranteed service. Availability: The United States (including Alaska, Hawaii, Puerto Rico and Guam)
Delivery method: USPS Priority Mail® Shipping time: 1-3 business days depending on your location. This is not a guaranteed service. Availability: The United States (including Alaska, Hawaii, Puerto Rico and Guam)
Delivery method: UPS Ground Shipping time: 1-5 Business Days depending on your location. This is not a guaranteed service. Availability: The United States (including Alaska, Hawaii, Puerto Rico and Guam) except P.O. Box
Delivery method: UPS 3 Day Select Shipping time: 3 Business Days Guarantee Service Availability: All U.S. states except Alaska, Hawaii, Puerto Rico, Guam and P.O.Box
Delivery method: UPS 2nd Days Air Shipping time: 2 Business Days Guarantee Service Availability: All 50 U.S. states and Puerto Rico with some limitations in Alaska and Hawaii except P.O.Box
Delivery method: UPS Next Day Air Shipping time: Next Business Day Guarantee, normally by 10:30am depending on " SHIP-TO ZIP CODE" Availability: All U.S. states (including Alaska, Hawaii, Puerto Rico) except P.O.Box
Delivery method: UPS Next Day Air Saver Shipping time: Next Business Day Guarantee, normally by 3:30pm (business) and the end of the next business day (Residential) depending on "SHIP-TO ZIP CODE" Availability: All U.S. states except Alaska, Hawaii, Puerto Rico, Guam and P.O.Box
Delivery method: UPS Next Day Air Early Shipping time: Next Business Day Guarantee, normally by 8:30am, depending on "SHIP-TO ZIP CODE" Availability: All 48 U.S. continguous states and Archorage, AK except Alaska, Hawaii, Puerto Rico, Guam and P.O.Box
Orders received by 2:00 PM PST are generally processed on the same business day. Orders received after this cutoff time will be processed within 24 to 48 hours. Shipping times are determined by the chosen shipping method and destination address. For details, please visit our Shipping Policy Page.
quote

Read more about Add to Quote

By adding items to your Quote Cart, you can request a personalized quote tailored to your specific needs. This is especially useful for bulk orders, as we may be able to offer you special pricing based on the quantity. Once you've added products to your Quote Cart, simply submit your request, and our team will get back to you promptly with a detailed quote. We're here to ensure you get the best value and service for your purchase!

Product Features

  • High-Density Design: MTPĀ® OM4 push-pull breakout cable optimized for high-density connectors and various cable configurations, offering superior space-saving and cost-effective installation in data centers and enterprise networks.
  • Enhanced Performance: OM4 fiber provides higher bandwidth and faster transmission rates compared to OM3, ensuring reliable high-speed data transfer for demanding applications in modern network infrastructures.
  • Plenum-Rated Safety: OFNP (Plenum) rated jacket meets strict fire safety standards, making it ideal for installation in air-handling spaces of commercial and residential buildings, enhancing overall network security.
  • Premium Connectivity: Features US Conec MTPĀ® Elite Female connector, fully compatible with MPO standards, offering an integrated push-pull mechanism for easier handling and superior optical performance in high-density environments.
  • Versatile Applications: Suitable for a wide range of networking scenarios, including data centers, enterprise networks, telecommunications, and high-performance computing environments, providing flexibility and scalability for diverse connectivity needs.

Product Description

20m OM4 MTP TO 4* LC 8 Fibers Duplex Corning Fiber Breakout Cable Type B Multimode 50/125 OFNP Rated, Aqua

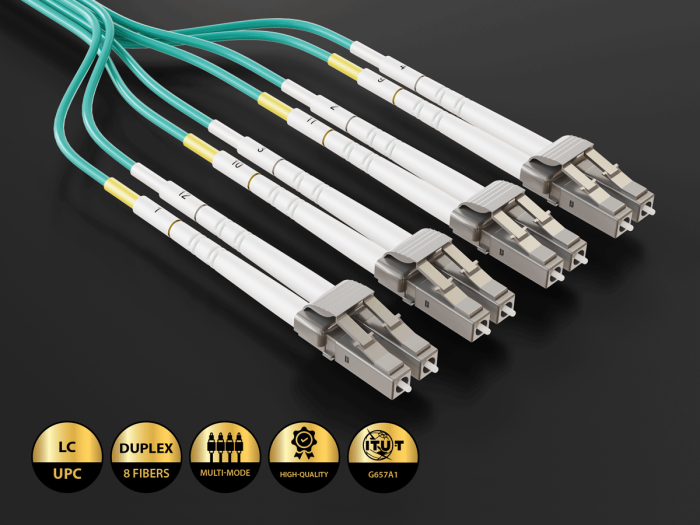

The OM4 MTP® to LC Duplex 8-Fiber Multimode OFNP Breakout Cable (Type B) is a high-performance solution designed for modern data center and enterprise network environments. This premium cable combines the high-density MTP® connector with four LC duplex connectors, providing an efficient transition from trunk cables to individual fiber connections.



Featuring Corning® glass with a 50µm core and 125µm cladding, this OM4 cable delivers superior bandwidth and transmission rates, surpassing the capabilities of OM3 cables. The aqua-colored OFNP (Plenum) rated jacket ensures compliance with stringent fire safety regulations, making it suitable for installation in air-handling spaces.

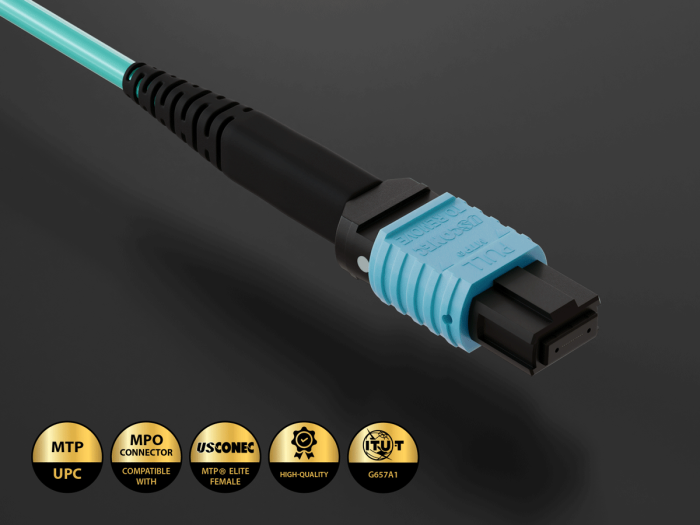

The cable's Type B (Reverse) configuration, with key-up to key-up orientation, ensures proper fiber alignment and compatibility with a wide range of network equipment. The MTP® Elite Female connector, fully compatible with MPO standards, incorporates an integrated push-pull mechanism for easy handling and enhanced durability.

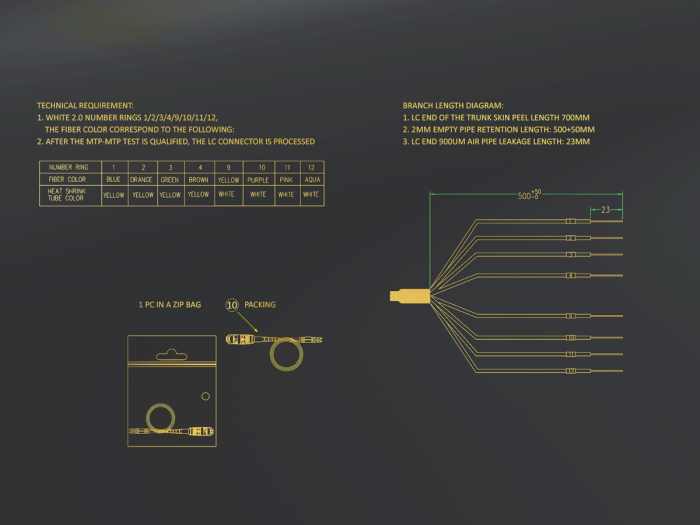

With a fiber count of 8 and a breakout length of 0.5 meters, this cable offers flexibility in high-density rack environments. The MTP® end features a 3.0mm jacket OD, while the LC ends have a 2.0mm jacket OD, balancing robustness with manageability.



Performance is a key focus, with insertion loss values of ≤0.35dB for MTP®/UPC and ≤0.20dB for LC/UPC connections. Return loss values of ≥20dB for MTP®/UPC and ≥30dB for LC/UPC further ensure signal integrity. Each cable undergoes rigorous 100% 3D testing to guarantee reliability and performance.

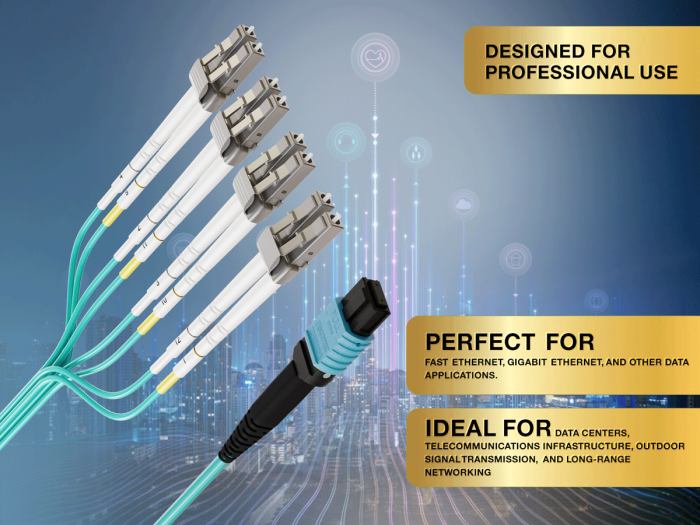

This versatile cable is ideal for various applications, including data centers, enterprise networks, telecommunications infrastructure, and high-performance computing environments. Its design supports current 10G, 40G, and 100G network speeds, with the potential to accommodate future upgrades.

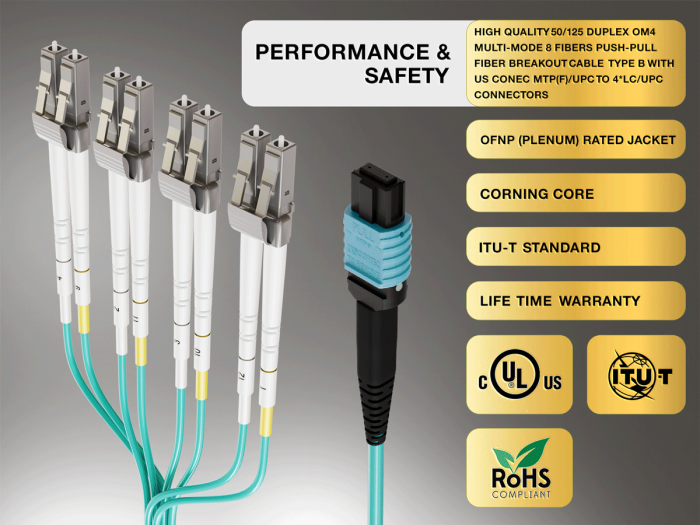

UL listed and equipped with dust-protective caps, this OM4 MTP® to LC breakout cable combines safety, performance, and ease of use. It represents an optimal solution for organizations seeking to implement high-density, high-speed fiber optic networks with the flexibility to adapt to evolving connectivity requirements.



Technical Specifications

Name
20m OM4 MTP TO 4* LC 8 Fibers Duplex Corning Fiber Breakout Cable Type B Multimode 50/125 OFNP Rated, Aqua
SKU
FB124-4C20
Color
Aqua
Gender
Male to Female
Condition
New
RoHS Compliant
Yes
Country of Manufacture
Vietnam

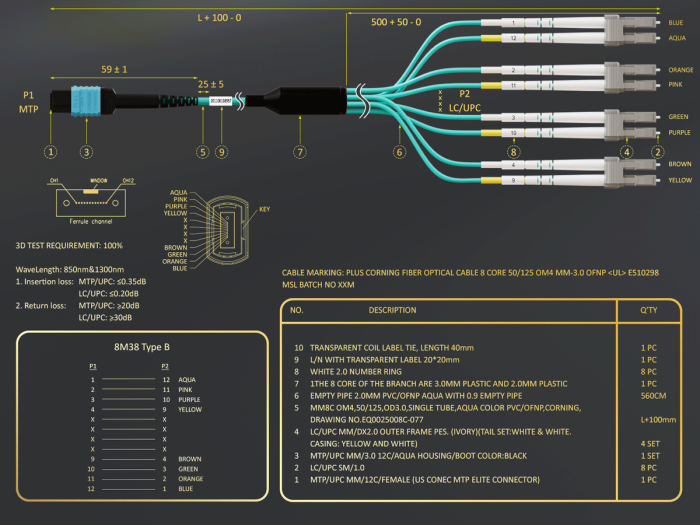

Specification
  • Fiber Type: OM4 Multimode 50/125Āµm
  • Connectors: MTPĀ® Elite Female to 4x LC/UPC Duplex
  • Fiber Count: 8 fibers
  • Cable Rating: OFNP (Plenum)
  • Configuration: Type B (Reverse, key up to key up)
  • Core/Cladding: CorningĀ® glass 50Āµm/125Āµm
  • Jacket Color: Aqua
  • Jacket OD: 3.0mm (MTPĀ® end), 2.0mm (LC end)
  • Breakout Length: 0.5m
  • Insertion Loss: MTPĀ®/UPC ā‰¤0.35dB, LC/UPC ā‰¤0.20dB
  • Return Loss: MTPĀ®/UPC ā‰„20dB, LC/UPC ā‰„30dB
  • Testing: 100% 3D tested
  • Compliance: UL listed
Features
  • High-Density Design: MTPĀ® OM4 push-pull breakout cable optimized for high-density connectors and various cable configurations, offering superior space-saving and cost-effective installation in data centers and enterprise networks.
  • Enhanced Performance: OM4 fiber provides higher bandwidth and faster transmission rates compared to OM3, ensuring reliable high-speed data transfer for demanding applications in modern network infrastructures.
  • Plenum-Rated Safety: OFNP (Plenum) rated jacket meets strict fire safety standards, making it ideal for installation in air-handling spaces of commercial and residential buildings, enhancing overall network security.
  • Premium Connectivity: Features US Conec MTPĀ® Elite Female connector, fully compatible with MPO standards, offering an integrated push-pull mechanism for easier handling and superior optical performance in high-density environments.
  • Versatile Applications: Suitable for a wide range of networking scenarios, including data centers, enterprise networks, telecommunications, and high-performance computing environments, providing flexibility and scalability for diverse connectivity needs.
Length
20 Meter
Connector
MTP/UPC to LC/UPC
Polish Type
UPC TO UPC
Jacket Type
OFNP (Plenum)
