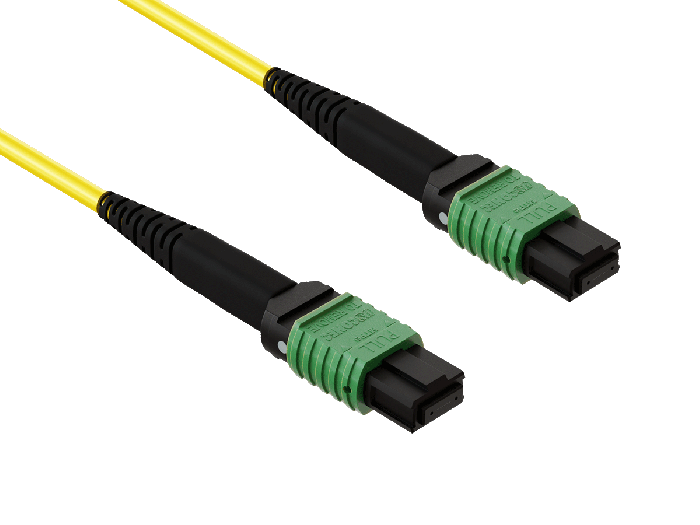

3m OS2 MTP TO MTP/APC 12 Fibers Corning Fiber Trunk Cable Type B Single-Mode 9/125 OFNP Rated, Yellow

The MTP® OS2 Single-Mode 12-Fiber Trunk Cable Type B (Female to Female) represents a pinnacle in high-density fiber optic connectivity solutions. This advanced cable utilizes US Conec MTP® female connectors on both ends, facilitating rapid deployment and streamlined cable management in data centers and high-performance network environments.

Engineered with Corning® SMF-28 Ultra glass, this OS2 9/125 single-mode fiber cable delivers superior bandwidth and transmission capabilities. The Type B (reversed) configuration caters to specific network architectures, ensuring compatibility with a wide range of equipment and applications.

The cable's OFNP (Plenum) rated jacket not only provides fire safety compliance for air-handling spaces but also offers durability and protection for the critical fiber strands within. Its yellow color coding allows for quick identification in complex cable installations.

Performance is paramount with this MTP® trunk cable. Boasting an insertion loss of ≤ 0.35 dB and a return loss of ≥ 60 dB, it ensures minimal signal degradation over long distances. The APC (Angled Physical Contact) polishing on both ends further minimizes back reflections, crucial for maintaining signal integrity in high-speed data transmission scenarios.

With a fiber count of 12 and a compact 3.0 mm jacket diameter, this cable excels in high-density applications where space is at a premium. It's particularly well-suited for data centers, enterprise networks, telecommunications infrastructure, and cloud computing facilities that demand maximum throughput in minimal space.

The G.657.A1 fiber grade, compatible with G.652.D standards, offers enhanced bend performance without sacrificing transmission quality. This characteristic is invaluable in tight installation spaces and complex routing scenarios.

Quality assurance is built into every aspect of this product. Each cable undergoes rigorous 3D testing, and includes protective dust caps to maintain connector cleanliness. The provided quality check report offers peace of mind for mission-critical installations.

Versatile in its applications, this MTP® OS2 trunk cable seamlessly integrates into various network architectures. Whether used for high-speed data transmission, telecommunications backbones, or interconnects in cloud computing environments, it delivers the performance and reliability demanded by today's sophisticated fiber optic networks.

UL listing and RoHS compliance further attest to the cable's adherence to industry standards and environmental regulations. For network professionals seeking a high-performance, future-proof fiber optic solution, the MTP® OS2 Single-Mode 12-Fiber Trunk Cable Type B stands as an exemplary choice, combining cutting-edge technology with practical design to meet the evolving demands of modern network infrastructure.
