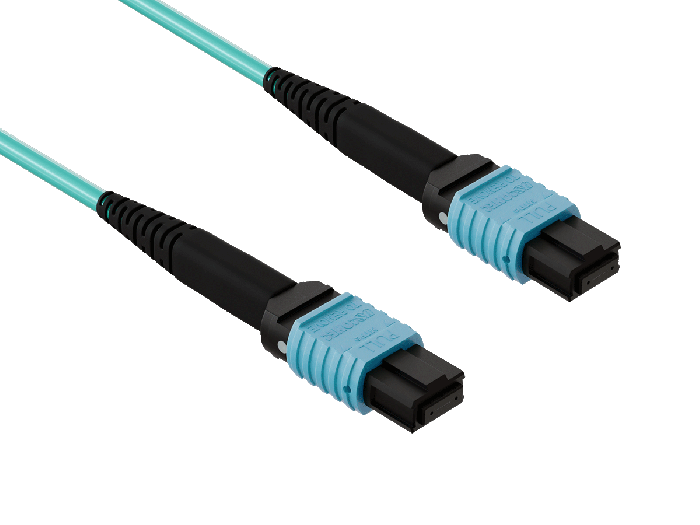

4m OM4 MTP TO MTP 12 Fibers Corning Fiber Trunk Cable Type B Multimode 50/125 OFNP Rated, Aqua

$59.49
Availability: In stock
SKU:
FB123-4B04
  • Qty.
    Price
  • 1
    $59.49
  • 2
    $58.30
  • 20
    $56.55
  • 40
    $54.29

4m OM4 MTP TO MTP 12 Fibers Corning Fiber Trunk Cable Type B Multimode 50/125 OFNP Rated, Aqua



The MTP® OM4 50/125 Multimode 12-Fiber Trunk Cable Type B (Female to Female) is an advanced optical networking solution designed to meet the demands of high-density, high-performance data center and enterprise network environments. This premium cable leverages OM4 multimode fiber technology to deliver superior bandwidth and transmission capabilities, supporting 10Gb connections up to 550 meters and 40/100Gb connections up to 150 meters.



Engineered with precision, this trunk cable features US Conec MTP® female connectors on both ends, configured in a Type B (Reverse) polarity with key up to key up orientation. The cable utilizes Corning® glass with a 50μm core and 125μm cladding, ensuring optimal light transmission and minimal signal degradation. With an impressive Effective Modal Bandwidth of 4700 MHz/km at 850nm, it provides the necessary performance for today's data-intensive applications.



The cable's OFNP (Plenum) rated aqua jacket not only aids in easy identification but also complies with stringent fire safety regulations, making it suitable for installation in air handling spaces. The 3.0mm outer diameter allows for efficient cable management in high-density racks and panels. Compatible with both LED and VCSEL laser light sources, this versatile cable adapts to various optical transmission systems.



Quality assurance is paramount, with each cable undergoing 100% factory testing. A comprehensive test report is included in every package, along with protective dust caps to maintain connector cleanliness. The UL listing further attests to the cable's adherence to industry standards and safety requirements.



Ideal for data centers, cloud computing facilities, and enterprise network backbones, this MTP® OM4 trunk cable excels in applications requiring rapid data transfer, low latency, and high reliability. Its design facilitates easier installation and maintenance, potentially reducing overall network infrastructure costs. Whether upgrading existing systems or building new high-performance networks, this cable provides the foundation for robust, future-ready optical connectivity solutions.



Add to Wishlist Add to Compare Add to Quote
  • High-Density Solution: MTP® OM4 push-pull trunk cable designed for high-density connectors and various cable configurations, offering space-saving benefits and reduced installation costs in complex network environments.
  • Superior Performance: OM4 fiber cable provides higher bandwidth and transmission rates compared to OM3, supporting 10Gb up to 550 meters and 40/100Gb up to 150 meters, ensuring optimal data transfer in demanding applications.
  • Versatile Applications: Ideal for data centers, enterprise networks, and high-performance computing environments requiring high-speed, high-density fiber optic connections with minimal signal loss and maximum reliability.
  • Enhanced Safety: OFNP (Plenum) rated fiber cable suitable for use in plenum spaces of commercial and residential buildings, meeting strict fire safety standards and regulations for improved building safety.
  • Quality Assurance: 100% factory tested with included test report, dust protective caps, and UL listing, ensuring reliable performance and peace of mind for critical network infrastructure deployments.

4m OM4 MTP TO MTP 12 Fibers Corning Fiber Trunk Cable Type B Multimode 50/125 OFNP Rated, Aqua



The MTP® OM4 50/125 Multimode 12-Fiber Trunk Cable Type B (Female to Female) is an advanced optical networking solution designed to meet the demands of high-density, high-performance data center and enterprise network environments. This premium cable leverages OM4 multimode fiber technology to deliver superior bandwidth and transmission capabilities, supporting 10Gb connections up to 550 meters and 40/100Gb connections up to 150 meters.



Engineered with precision, this trunk cable features US Conec MTP® female connectors on both ends, configured in a Type B (Reverse) polarity with key up to key up orientation. The cable utilizes Corning® glass with a 50μm core and 125μm cladding, ensuring optimal light transmission and minimal signal degradation. With an impressive Effective Modal Bandwidth of 4700 MHz/km at 850nm, it provides the necessary performance for today's data-intensive applications.



The cable's OFNP (Plenum) rated aqua jacket not only aids in easy identification but also complies with stringent fire safety regulations, making it suitable for installation in air handling spaces. The 3.0mm outer diameter allows for efficient cable management in high-density racks and panels. Compatible with both LED and VCSEL laser light sources, this versatile cable adapts to various optical transmission systems.



Quality assurance is paramount, with each cable undergoing 100% factory testing. A comprehensive test report is included in every package, along with protective dust caps to maintain connector cleanliness. The UL listing further attests to the cable's adherence to industry standards and safety requirements.



Ideal for data centers, cloud computing facilities, and enterprise network backbones, this MTP® OM4 trunk cable excels in applications requiring rapid data transfer, low latency, and high reliability. Its design facilitates easier installation and maintenance, potentially reducing overall network infrastructure costs. Whether upgrading existing systems or building new high-performance networks, this cable provides the foundation for robust, future-ready optical connectivity solutions.



More Information
Length 4 Meter
Color Aqua
Gender Female to Female
Connector MTP/UPC to MTP/UPC
Polish Type UPC TO UPC
Jacket Type OFNP (Plenum)
Condition New
RoHS Compliant Yes
Country of Manufacture Vietnam
Specification
  • Fiber Type: OM4 Multimode 50/125μm
  • Connector Type: US Conec MTP® Female to Female
  • Fiber Count: 12 Fibers
  • Cable Configuration: Type B (Reverse, key up to key up)
  • Polish Type: UPC to UPC
  • Wavelength: 850nm/1300nm
  • Insertion Loss: < 0.3 dB
  • Return Loss: > 20 dB
  • Jacket Material: OFNP (Plenum)
  • Jacket Color: Aqua
  • Jacket OD: 3.0 mm
  • Core/Cladding: Corning® glass 50μm/125μm
  • Effective Modal Bandwidth: 4700 MHz/km at 850nm
  • Transmission Distance: 10Gb up to 550m, 40Gb and 100Gb up to 150m
  • Compliance: UL listed
Features
  • High-Density Solution: MTP® OM4 push-pull trunk cable designed for high-density connectors and various cable configurations, offering space-saving benefits and reduced installation costs in complex network environments.
  • Superior Performance: OM4 fiber cable provides higher bandwidth and transmission rates compared to OM3, supporting 10Gb up to 550 meters and 40/100Gb up to 150 meters, ensuring optimal data transfer in demanding applications.
  • Versatile Applications: Ideal for data centers, enterprise networks, and high-performance computing environments requiring high-speed, high-density fiber optic connections with minimal signal loss and maximum reliability.
  • Enhanced Safety: OFNP (Plenum) rated fiber cable suitable for use in plenum spaces of commercial and residential buildings, meeting strict fire safety standards and regulations for improved building safety.
  • Quality Assurance: 100% factory tested with included test report, dust protective caps, and UL listing, ensuring reliable performance and peace of mind for critical network infrastructure deployments.
Name 4m OM4 MTP TO MTP 12 Fibers Corning Fiber Trunk Cable Type B Multimode 50/125 OFNP Rated, Aqua
SKU FB123-4B04
