5m OM4 MPO TO MPO 12 Fibers Corning Fiber Trunk Cable Type A Multimode 50/125 OFNR Rated, Aqua

The MPO OM4 Multimode 12-Fiber Trunk Cable Type A represents a pinnacle in high-density networking solutions, meticulously engineered for modern data centers and telecommunications facilities. This advanced fiber optic cable leverages OM4 multimode technology to deliver superior performance in 10G, 40G, and 100G network environments.

Featuring Corning® glass with a 50μm core and 125μm cladding, this cable exhibits exceptional light transmission properties. Its OM4 classification ensures an impressive Effective Modal Bandwidth of 4700 MHz/km at 850nm, significantly surpassing the capabilities of OM3 cables. This enhanced bandwidth translates to remarkable transmission distances: up to 550 meters for 10Gb connections and 150 meters for both 40Gb and 100Gb applications.

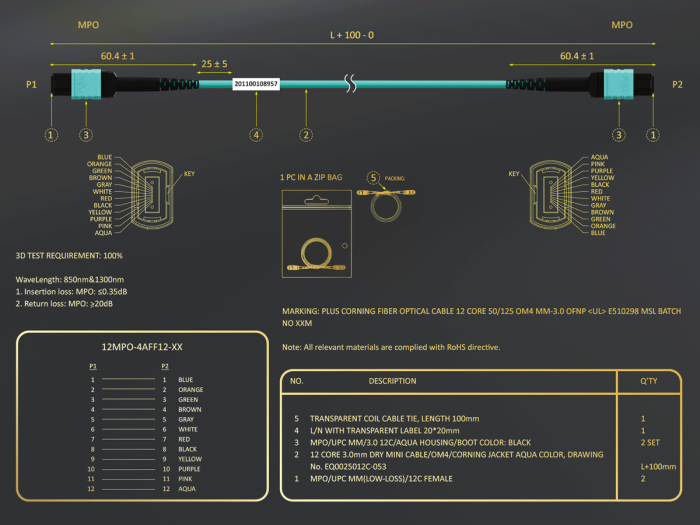

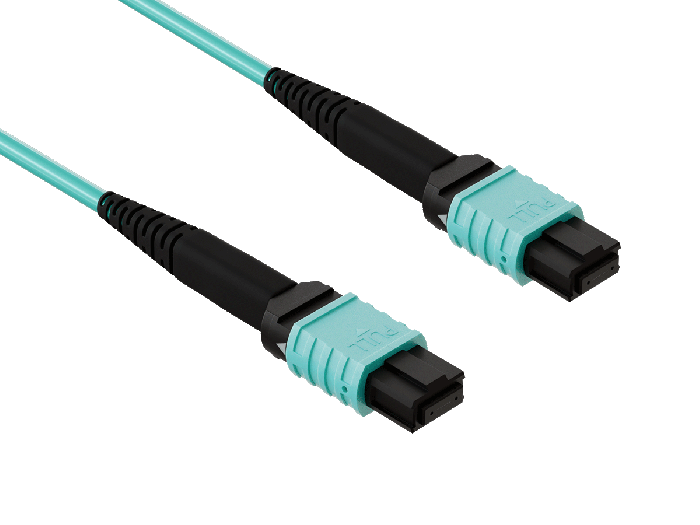

The cable's design incorporates MPO Female Low-Loss connectors on both ends, configured in a Type A (straight-through) arrangement with key up to key down orientation. This configuration optimizes compatibility with a wide range of network equipment, including SFP+, QSFP, and QSFP+ transceivers. The UPC polish on the connectors ensures minimal signal loss, with an insertion loss of ≤ 0.35 dB and a return loss of ≥ 20dB.

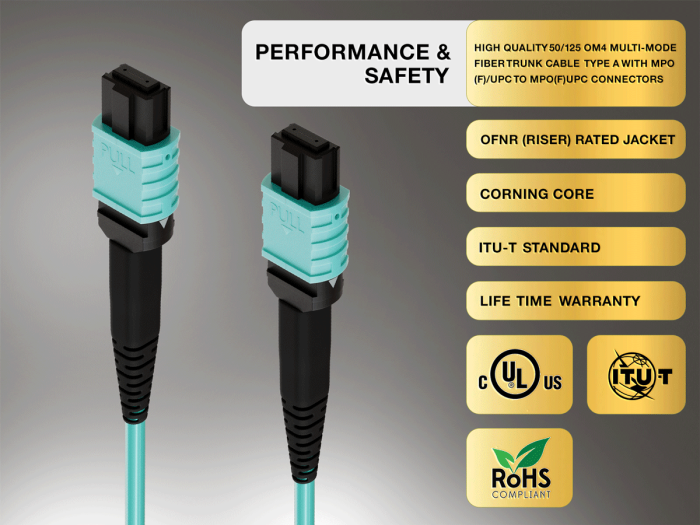

Safety and durability are paramount in the cable's construction. The OFNR (Riser) rated aqua jacket, measuring 3.0mm in outer diameter, complies with stringent fire safety standards for vertical runs in building risers. This UL-listed cable not only meets safety requirements but also provides the flexibility needed for complex installation scenarios.

Quality assurance is integral to our product. Each cable undergoes comprehensive testing, with detailed reports provided in every package. The inclusion of dust-protective caps safeguards the connectors from contamination and damage during transit and installation, ensuring optimal performance from the moment of deployment.

The versatility of this MPO trunk cable makes it an ideal choice for a variety of high-density networking applications. It excels in data center interconnects, storage area networks, and high-speed enterprise backbones. The cable's ability to support multiple network speeds provides a future-proof solution, allowing for seamless upgrades as bandwidth demands increase.

Designed for use with both LED and VCSEL laser light sources, this OM4 fiber cable offers flexibility in system design and upgrades. Its compatibility with various active equipment types further enhances its value as a versatile networking component.

For network architects and IT professionals seeking a reliable, high-performance solution for complex fiber optic infrastructures, the MPO OM4 Multimode 12-Fiber Trunk Cable Type A stands out as an exemplary choice. It combines cutting-edge technology, robust construction, and versatile applicability to meet the evolving demands of modern, high-speed network environments.
