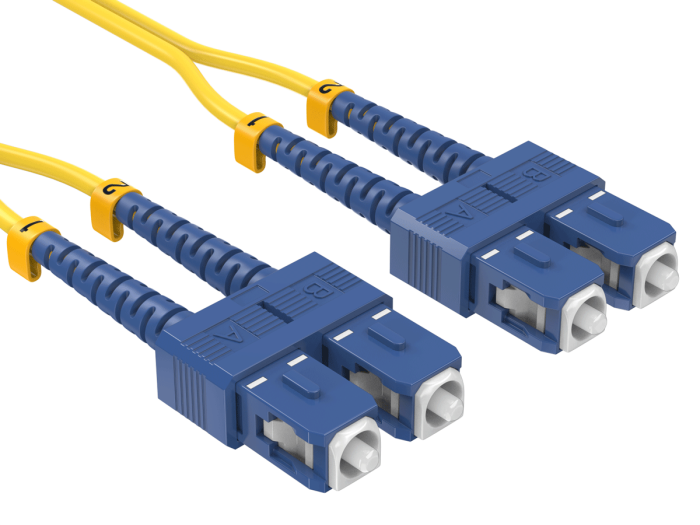

7m OS2 SC to SC UPC Duplex Corning Fiber Optic Cable SingleMode 9/125 OFNR Rated, Yellow
-
Qty.Price
-
1$4.69
-
2$4.62
-
20$4.54
-
40$4.40
7m OS2 SC to SC UPC Duplex Corning Fiber Optic Cable SingleMode 9/125 OFNR Rated, Yellow
The OS2 Duplex Single Mode SC/SC 9/125 Fiber Optic Cable is a high-performance networking solution designed for long-range, high-speed data transmission in high-density environments. This cable excels in applications ranging from modern data centers and enterprise networks to telecommunications infrastructure and metropolitan area networks, offering superior performance and reliability over extended distances.
At the core of this cable's design is the high-quality single-mode fiber with a 9/125 μm core/cladding diameter, utilizing Corning® glass for optimal performance. This configuration is optimized for long-range data transmission, making it ideal for applications that require signals to travel over significant distances without degradation. The duplex design, featuring two strands, allows for bidirectional communication, essential in many modern networking setups.
The cable features SC connectors on both ends, known for their reliability and ease of use. These connectors offer a simple push-pull mechanism for quick installation and removal, making them particularly suitable for high-density network applications where frequent changes or maintenance may be required. This design is user-friendly and time-efficient, allowing for rapid deployment and reconfiguration in dynamic network environments.
Performance is a key attribute of this cable. With an insertion loss of ≤ 0.3 dB and a return loss of ≥ 55 dB, it maintains superior signal integrity over long distances, ensuring reliable data transmission across the network. The UPC (Ultra Physical Contact) polish further minimizes back reflection and signal loss, contributing to the cable's excellent performance.
Safety and compliance are addressed through the cable's OFNR (Riser) rated jacket, which allows for installation in vertical shafts between floors in buildings. This rating ensures enhanced fire safety, crucial for protecting your valuable infrastructure and meeting building codes.
The cable's physical attributes are tailored for professional use. With a jacket outer diameter of 2.0mm, it strikes a balance between durability and flexibility, facilitating easy routing and management in high-density environments. The industry-standard yellow coloration of the jacket enables quick identification of single-mode fiber in complex cabling installations.
Quality assurance is paramount, with each cable undergoing 100% factory testing. A test report is included in every package, providing verified performance data for your peace of mind.
This OS2 Duplex Single Mode SC/SC 9/125 Fiber Optic Cable is suitable for various applications, including data centers, enterprise networks, telecommunications infrastructure, long-distance networks, campus networks, high-speed internet backbones, and metropolitan area networks. It's particularly well-suited for Fast Ethernet, Gigabit Ethernet, and other high-bandwidth, long-range data applications in environments that require high port density and frequent reconfigurations.
The SC/SC configuration makes this cable an excellent choice for standardized network setups, ensuring compatibility and consistency across your infrastructure. This can be particularly valuable in large-scale deployments where uniformity and ease of management are crucial.
By selecting this cable, network managers can effectively address current high-bandwidth, long-distance requirements while maintaining flexibility in high-density environments. Its combination of long-range capability, user-friendly connector design, superior performance, and adherence to industry standards makes it a practical and reliable choice for modern networking needs across a wide range of industries and applications, especially those requiring frequent changes or high port density.
7m OS2 SC to SC UPC Duplex Corning Fiber Optic Cable SingleMode 9/125 OFNR Rated, Yellow
The OS2 Duplex Single Mode SC/SC 9/125 Fiber Optic Cable is a high-performance networking solution designed for long-range, high-speed data transmission in high-density environments. This cable excels in applications ranging from modern data centers and enterprise networks to telecommunications infrastructure and metropolitan area networks, offering superior performance and reliability over extended distances.
At the core of this cable's design is the high-quality single-mode fiber with a 9/125 μm core/cladding diameter, utilizing Corning® glass for optimal performance. This configuration is optimized for long-range data transmission, making it ideal for applications that require signals to travel over significant distances without degradation. The duplex design, featuring two strands, allows for bidirectional communication, essential in many modern networking setups.
The cable features SC connectors on both ends, known for their reliability and ease of use. These connectors offer a simple push-pull mechanism for quick installation and removal, making them particularly suitable for high-density network applications where frequent changes or maintenance may be required. This design is user-friendly and time-efficient, allowing for rapid deployment and reconfiguration in dynamic network environments.
Performance is a key attribute of this cable. With an insertion loss of ≤ 0.3 dB and a return loss of ≥ 55 dB, it maintains superior signal integrity over long distances, ensuring reliable data transmission across the network. The UPC (Ultra Physical Contact) polish further minimizes back reflection and signal loss, contributing to the cable's excellent performance.
Safety and compliance are addressed through the cable's OFNR (Riser) rated jacket, which allows for installation in vertical shafts between floors in buildings. This rating ensures enhanced fire safety, crucial for protecting your valuable infrastructure and meeting building codes.
The cable's physical attributes are tailored for professional use. With a jacket outer diameter of 2.0mm, it strikes a balance between durability and flexibility, facilitating easy routing and management in high-density environments. The industry-standard yellow coloration of the jacket enables quick identification of single-mode fiber in complex cabling installations.
Quality assurance is paramount, with each cable undergoing 100% factory testing. A test report is included in every package, providing verified performance data for your peace of mind.
This OS2 Duplex Single Mode SC/SC 9/125 Fiber Optic Cable is suitable for various applications, including data centers, enterprise networks, telecommunications infrastructure, long-distance networks, campus networks, high-speed internet backbones, and metropolitan area networks. It's particularly well-suited for Fast Ethernet, Gigabit Ethernet, and other high-bandwidth, long-range data applications in environments that require high port density and frequent reconfigurations.
The SC/SC configuration makes this cable an excellent choice for standardized network setups, ensuring compatibility and consistency across your infrastructure. This can be particularly valuable in large-scale deployments where uniformity and ease of management are crucial.
By selecting this cable, network managers can effectively address current high-bandwidth, long-distance requirements while maintaining flexibility in high-density environments. Its combination of long-range capability, user-friendly connector design, superior performance, and adherence to industry standards makes it a practical and reliable choice for modern networking needs across a wide range of industries and applications, especially those requiring frequent changes or high port density.
Length | 7 Meter |
---|---|
Color | Yellow |
Gender | Male to Male |
Connector | SC/UPC to SC/UPC |
Polish Type | UPC TO UPC |
Jacket Type | OFNR |
Condition | New |
RoHS Compliant | Yes |
Country of Manufacture | Vietnam |
Specification |
|
Features |
|
Name | 7m OS2 SC to SC UPC Duplex Corning Fiber Optic Cable SingleMode 9/125 OFNR Rated, Yellow |
SKU | FB102-9607 |
