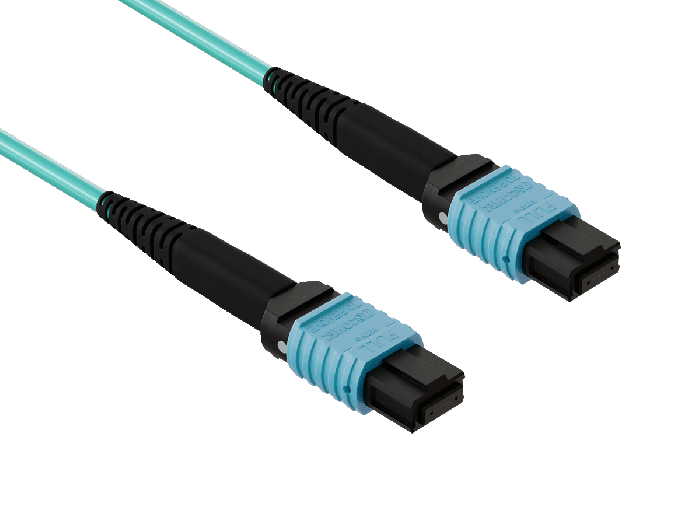

8m OM4 MTP TO MTP 12 Fibers Corning Fiber Trunk Cable Type B Multimode 50/125 OFNP Rated, Aqua
-
Qty.Price
-
1$78.99
-
2$77.41
-
20$75.09
-
40$72.08
8m OM4 MTP TO MTP 12 Fibers Corning Fiber Trunk Cable Type B Multimode 50/125 OFNP Rated, Aqua
The MTP® OM4 50/125 Multimode 12-Fiber Trunk Cable Type B (Female to Female) is an advanced optical networking solution designed to meet the demands of high-density, high-performance data center and enterprise network environments. This premium cable leverages OM4 multimode fiber technology to deliver superior bandwidth and transmission capabilities, supporting 10Gb connections up to 550 meters and 40/100Gb connections up to 150 meters.
Engineered with precision, this trunk cable features US Conec MTP® female connectors on both ends, configured in a Type B (Reverse) polarity with key up to key up orientation. The cable utilizes Corning® glass with a 50μm core and 125μm cladding, ensuring optimal light transmission and minimal signal degradation. With an impressive Effective Modal Bandwidth of 4700 MHz/km at 850nm, it provides the necessary performance for today's data-intensive applications.
The cable's OFNP (Plenum) rated aqua jacket not only aids in easy identification but also complies with stringent fire safety regulations, making it suitable for installation in air handling spaces. The 3.0mm outer diameter allows for efficient cable management in high-density racks and panels. Compatible with both LED and VCSEL laser light sources, this versatile cable adapts to various optical transmission systems.
Quality assurance is paramount, with each cable undergoing 100% factory testing. A comprehensive test report is included in every package, along with protective dust caps to maintain connector cleanliness. The UL listing further attests to the cable's adherence to industry standards and safety requirements.
Ideal for data centers, cloud computing facilities, and enterprise network backbones, this MTP® OM4 trunk cable excels in applications requiring rapid data transfer, low latency, and high reliability. Its design facilitates easier installation and maintenance, potentially reducing overall network infrastructure costs. Whether upgrading existing systems or building new high-performance networks, this cable provides the foundation for robust, future-ready optical connectivity solutions.
8m OM4 MTP TO MTP 12 Fibers Corning Fiber Trunk Cable Type B Multimode 50/125 OFNP Rated, Aqua
The MTP® OM4 50/125 Multimode 12-Fiber Trunk Cable Type B (Female to Female) is an advanced optical networking solution designed to meet the demands of high-density, high-performance data center and enterprise network environments. This premium cable leverages OM4 multimode fiber technology to deliver superior bandwidth and transmission capabilities, supporting 10Gb connections up to 550 meters and 40/100Gb connections up to 150 meters.
Engineered with precision, this trunk cable features US Conec MTP® female connectors on both ends, configured in a Type B (Reverse) polarity with key up to key up orientation. The cable utilizes Corning® glass with a 50μm core and 125μm cladding, ensuring optimal light transmission and minimal signal degradation. With an impressive Effective Modal Bandwidth of 4700 MHz/km at 850nm, it provides the necessary performance for today's data-intensive applications.
The cable's OFNP (Plenum) rated aqua jacket not only aids in easy identification but also complies with stringent fire safety regulations, making it suitable for installation in air handling spaces. The 3.0mm outer diameter allows for efficient cable management in high-density racks and panels. Compatible with both LED and VCSEL laser light sources, this versatile cable adapts to various optical transmission systems.
Quality assurance is paramount, with each cable undergoing 100% factory testing. A comprehensive test report is included in every package, along with protective dust caps to maintain connector cleanliness. The UL listing further attests to the cable's adherence to industry standards and safety requirements.
Ideal for data centers, cloud computing facilities, and enterprise network backbones, this MTP® OM4 trunk cable excels in applications requiring rapid data transfer, low latency, and high reliability. Its design facilitates easier installation and maintenance, potentially reducing overall network infrastructure costs. Whether upgrading existing systems or building new high-performance networks, this cable provides the foundation for robust, future-ready optical connectivity solutions.
Length | 8 Meter |
---|---|
Color | Aqua |
Gender | Female to Female |
Connector | MTP/UPC to MTP/UPC |
Polish Type | UPC TO UPC |
Jacket Type | OFNP (Plenum) |
Condition | New |
RoHS Compliant | Yes |
Country of Manufacture | Vietnam |
Specification |
|
Features |
|
Name | 8m OM4 MTP TO MTP 12 Fibers Corning Fiber Trunk Cable Type B Multimode 50/125 OFNP Rated, Aqua |
SKU | FB123-4B08 |
