What Are NEMA and IEC Connectors?

In the world of power supply and distribution, NEMA (National Electrical Manufacturers Association) and IEC (International Electrotechnical Commission) connectors are critical for ensuring devices receive safe and reliable power. These connectors are designed to meet specific standards and are commonly used across a range of applications, from household appliances to industrial equipment and data centers. Understanding the differences between NEMA and IEC connectors can help users select the best option for their needs, ensuring compatibility, safety, and efficiency.

How Do NEMA and IEC Connectors Differ?

NEMA and IEC connectors differ primarily in their design standards and applications. NEMA connectors are standard in North America, where they follow strict guidelines on physical configuration to meet regional electrical requirements. IEC connectors, on the other hand, are used internationally and are widely compatible with devices around the world.

NEMA connectors are typically defined by their application-specific configurations and come in numerous types for specific uses. IEC connectors, meanwhile, follow global standards, often being used in data centers, computers, and other electronic devices requiring universal compatibility.

The following table highlights the primary differences between NEMA and IEC connectors:

What Are the Most Common NEMA Connector Types?

NEMA connectors are used extensively across North America for both household and industrial applications. Here’s a breakdown of some of the most commonly used NEMA connectors and their characteristics:

1. NEMA 5-15: This is the standard 3-prong plug used in most North American households. It is commonly used for small appliances, electronics, and standard household devices.

2. NEMA 5-20: With a similar appearance to the NEMA 5-15, the NEMA 5-20 is used for equipment that requires a bit more power, such as larger appliances, power tools, and some commercial devices.


3. NEMA 6-15 and NEMA 6-20: These connectors are typically used for air conditioning units, heavier appliances, and industrial machinery.


4. NEMA L5-30: This is a locking connector. The locking mechanism prevents accidental disconnection, making it ideal for industrial equipment, generators, and some power distribution units.


5. NEMA L6-30: Another locking connector, the L6-30 is used for high-power devices such as servers, industrial-grade machines, and large HVAC systems.


Each NEMA connector type is designed for a specific application, ensuring safe power delivery for the intended device. Locking NEMA connectors, like the L5-30 and L6-30, add security to applications where accidental disconnection could disrupt operations or pose safety risks.

What Are Common IEC Connector Types and Their Applications?

IEC connectors are recognized globally and are widely used for computers, servers, and data center equipment. They are known by their C classifications (e.g., C13, C19), each indicating specific configurations suited to different power requirements. Let’s explore some common IEC connector types:

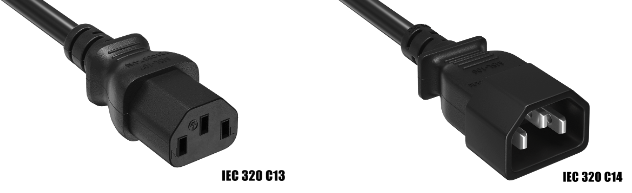

1. IEC C13/C14: One of the most widely used connectors, the C13 (female) and C14 (male) pair is commonly found on desktop computers, monitors, printers, and other office equipment.


2. IEC C15: The C15 connector is designed for high-temperature environments. It’s typically used for electric kettles, high-power appliances, and networking equipment that generates significant heat.


3. IEC C19/C20: The C19 (female) and C20 (male) connectors are used for high-power devices, such as servers, data center equipment, and large printers.


4. IEC C5: Known as the “Mickey Mouse” or “Cloverleaf” connector due to its shape, the C5 pair is used for portable devices like laptop power adapters and some small electronics.


5. IEC C7: Also called the “Figure-8” connector, the C7 (female) connectors are ungrounded and commonly used in low-power applications like small electronics, DVD players, and portable speakers.


IEC connectors are versatile, covering a wide range of devices and environments. From low-power connectors like the C7/C8 to the high-power C19/C20, these connectors allow for universal compatibility in professional and personal settings.

What Are the Different Types of Power Cord Jackets?

Power cords come with various jacket types that provide insulation, durability, and protection based on the environment in which they’re used. Here’s a breakdown of some common jacket types and their characteristics:

1. PVC (Polyvinyl Chloride): PVC jackets are flexible, cost-effective, and resistant to moisture and wear. They’re commonly used in indoor environments for general-purpose applications, such as office equipment and household appliances.

2. SJT (Service Junior Thermoplastic): SJT jackets are thicker and more durable than standard PVC, providing resistance to oil, water, and abrasion. SJT cords are typically used for medium-duty applications, including power tools, kitchen appliances, and portable lighting.

3. SJTW (Service Junior Thermoplastic Weather-resistant): SJTW jackets add a layer of weather resistance, making them suitable for outdoor use. These cords are durable, flexible, and designed to withstand exposure to UV rays and water, ideal for outdoor power tools and extension cords.

4. SPT-2 (Service Parallel Thermoplastic): SPT-2 jackets are lightweight and often used in light-duty applications. They provide basic insulation and flexibility, commonly found on household appliances like lamps, fans, and radios.

5. SVT (Service Vacuum Thermoplastic): SVT jackets are lightweight, compact, and ideal for light-duty indoor use. They are often used in small household appliances, vacuum cleaners, and similar equipment where flexibility and ease of handling are needed.

6. H05VV-F: This is a European-standard flexible PVC jacket used in light-duty applications. H05VV-F cables are designed for indoor use, providing flexibility and resistance to light wear and moisture. They’re commonly used for office equipment and small household appliances.

Choosing the right jacket type ensures that the cord is safe and durable in its intended environment, protecting against wear and damage over time.

Conclusion: Choosing the Right NEMA or IEC Connector for Your Needs

Selecting the right power supply connector, whether NEMA or IEC, involves understanding the device’s power requirements, the connector’s design, and the application environment. From household appliances to industrial machines and data centers, NEMA and IEC connectors provide reliable power solutions designed to meet both regional and international standards.

At Cable Leader, we offer a full range of NEMA and IEC connectors to meet diverse needs, ensuring compatibility, safety, and performance for any application. With high-quality options across different configurations and jacket types, Cable Leader provides the solutions you need for reliable, efficient power connections.
