Multimode 50/125 OM3

Shop high-quality Multimode 50/125 OM3 fiber optic cables at CableLeader. Our OM3 cables support 10Gb, 40Gb, and 100Gb applications with LC and SC connector options. Enjoy superior performance and reliability with CorningĀ® glass and LSZH/OFNR rated jackets.

Items 1-10 of 48

chevron
  • Position
  • Boot Type
  • Name
  • Price
  • Color
  • Connector
  • Length
  • Connector
  • Cable Gauge
  • Conductors
  • Resolutions Supported
  • Capacity
  • Amps
  • Jacket
  • Best Sellers
  • Revenue
  • Most Viewed
  • Now in Wishlists
  • Reviews Count
  • Top Rated
  • New
  • Biggest Saving
  • Price: low to high
  • Price: high to low

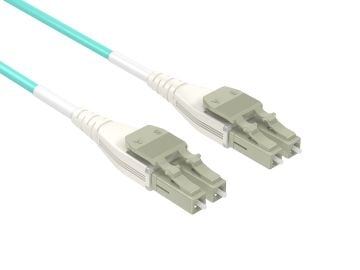

1m OM3 LC/LC Uniboot Duplex Corning Fiber Optic Cable Multimode 50/125 OFNR Rated, Aqua
SKU: FB106-4101

1m OM3 LC to LC UPC Uniboot Duplex Corning Fiber Optic Cable Multimode 50/125 OFNR Rated, Aqua

1
$7.28
2
$7.21
20
$7.10
40
$6.96
$7.28
2m OM3 LC/LC Uniboot Duplex Corning Fiber Optic Cable Multimode 50/125 OFNR Rated, Aqua
SKU: FB106-4102

2m OM3 LC to LC UPC Uniboot Duplex Corning Fiber Optic Cable Multimode 50/125 OFNR Rated, Aqua

1
$7.48
2
$7.43
20
$7.35
40
$7.20
$7.48

Out of stock

3m OM3 LC/LC Uniboot Duplex Corning Fiber Optic Cable Multimode 50/125 OFNR Rated, Aqua
SKU: FB106-4103

3m OM3 LC to LC UPC Uniboot Duplex Corning Fiber Optic Cable Multimode 50/125 OFNR Rated, Aqua

1
$8.15
2
$8.07
20
$7.98
40
$7.82
$8.15

Out of stock

5m OM3 LC/LC Uniboot Duplex Corning Fiber Optic Cable Multimode 50/125 OFNR Rated, Aqua
SKU: FB106-4105

5m OM3 LC to LC UPC Uniboot Duplex Corning Fiber Optic Cable Multimode 50/125 OFNR Rated, Aqua

1
$12.38
2
$12.18
20
$11.95
40
$11.71
$12.38
10m OM3 LC/LC Uniboot Duplex Corning Fiber Optic Cable Multimode 50/125 OFNR Rated, Aqua
SKU: FB106-4110

10m OM3 LC to LC UPC Uniboot Duplex Corning Fiber Optic Cable Multimode 50/125 OFNR Rated, Aqua

1
$13.38
2
$13.25
20
$13.05
40
$12.79
$13.38
15m OM3 LC/LC Uniboot Duplex Corning Fiber Optic Cable Multimode 50/125 OFNR Rated, Aqua
SKU: FB106-4115

15m OM3 LC to LC UPC Uniboot Duplex Corning Fiber Optic Cable Multimode 50/125 OFNR Rated, Aqua

1
$18.30
2
$18.12
20
$17.85
40
$17.49
$18.30
20m OM3 LC to SC Duplex Corning Fiber Optic Cable Multimode 50/125 LSZH/OFNR Rated, Aqua
SKU: FB101-4220

20m OM3 LC to SC UPC Duplex Corning Fiber Optic Cable Multimode 50/125 LSZH/OFNR Rated, Aqua

1
$13.60
2
$13.40
20
$13.20
40
$12.94
$13.60
7m OM3 LC to SC Duplex Corning Fiber Optic Cable Multimode 50/125 LSZH/OFNR Rated, Aqua
SKU: FB101-4207

7m OM3 LC to SC UPC Duplex Corning Fiber Optic Cable Multimode 50/125 LSZH/OFNR Rated, Aqua

1
$7.30
2
$7.10
20
$6.85
40
$6.56
$7.30
25m OM3 LC to SC Duplex Corning Fiber Optic Cable Multimode 50/125 LSZH/OFNR Rated, Aqua
SKU: FB101-4225

25m OM3 LC to SC UPC Duplex Corning Fiber Optic Cable Multimode 50/125 LSZH/OFNR Rated, Aqua

1
$16.00
2
$15.80
20
$15.65
40
$15.40
$16.00
10m OM3 SC/SC Duplex Corning Fiber Optic Cable Multimode 50/125 LSZH/OFNR Rated, Aqua
SKU: FB101-4610

10m OM3 SC to SC UPC Duplex Corning Fiber Optic Cable Multimode 50/125 LSZH/OFNR Rated, Aqua

1
$8.55
2
$8.08
20
$7.84
40
$7.60
$8.55

Items 1-10 of 48

Show
chevron
  • 10
  • 20
  • 30

More About Multimode 50/125 OM3

CableLeader is your trusted source for high-quality Multimode 50/125 OM3 fiber optic cables. Our extensive range of OM3 cables supports 10Gb up to 300 meters, 40Gb, and 100Gb up to 100 meters, making them perfect for high-throughput applications in data centers, enterprise networks, and more.

Our OM3 cables feature precision-engineered LC and SC connectors for reliable connections and easy installation. The LC connectors are ideal for high-density applications, while the SC connectors offer a simple push-pull motion for quick deployment. All our cables are made with premium CorningĀ® glass and are LSZH/OFNR (riser) rated for use in vertical shafts between building floors.

With an Effective Modal Bandwidth (EMB) of 2000 MHz/km at 850nm, our OM3 cables are compatible with LED and VCSEL laser light sources and backward compatible with LED-based 50/125 multimode fiber applications. Trust CableLeader for your Multimode 50/125 OM3 fiber optic cable needs and enjoy superior performance, reliability, and value.

Here is the SEO-optimized, comprehensive article on

Multimode 50/125 OM3 Fiber Optic Cables

:

Introduction to Multimode 50/125 OM3 Fiber Optic Cables

Multimode 50/125 OM3 fiber optic cables, also known as laser-optimized multimode fiber (LOMMF) cables, are high-performance cables designed for high-speed data transmission in enterprise networks, data centers, and other demanding environments. These cables feature a 50-micron core diameter and a 125-micron cladding diameter, optimized for 850nm laser-based transmission.

With an Effective Modal Bandwidth (EMB) of 2000 MHz/km at 850nm, OM3 cables support data rates up to 10 Gigabit Ethernet (10GbE) over distances up to 300 meters, making them ideal for high-throughput applications. They are also capable of supporting higher data rates like 40GbE and 100GbE over shorter distances, typically up to 100 meters.

Connectors and Specifications

Multimode 50/125 OM3 fiber optic cables are available with a variety of connectors, including the popular LC and SC connectors. The LC connectors are compact and ideal for high-density applications, while the SC connectors offer a simple push-pull motion for easy installation and removal.

  • Fiber Connector: LC, SC
  • Fiber Mode: OM3, Multimode, 50/125 Ī¼m
  • Fiber Count: 2 Strands
  • Polish Type: UPC to UPC
  • Insertion Loss: < 0.3 dB
  • Return Loss: > 35 dB
  • Jacket OD: 2.0 mm
  • Jacket Material: LSZH/OFNR (Riser)
  • Jacket Color: Aqua

Usage and Applications

Multimode 50/125 OM3 fiber optic cables are widely used in various applications that require high-speed data transmission over moderate distances. They are commonly deployed in data centers, enterprise networks, storage area networks (SANs), and high-performance computing (HPC) environments.

These cables are compatible with LED and VCSEL laser light sources, making them suitable for use with a wide range of networking equipment and transceivers. They are also backward compatible with LED-based 50/125 multimode fiber applications, ensuring seamless integration with existing infrastructure.

With their LSZH/OFNR (riser) rating, OM3 cables can be safely used in vertical shafts between building floors, providing added flexibility and compliance with safety regulations.

Durability and Quality Assurance

CableLeader's Multimode 50/125 OM3 fiber optic cables are constructed using premium CorningĀ® glass, ensuring superior optical performance and durability. Each cable undergoes rigorous testing and quality control measures to ensure compliance with industry standards and specifications.

These cables are designed to withstand harsh environmental conditions, making them suitable for use in demanding industrial and outdoor applications. With their robust construction and high-quality materials, CableLeader's OM3 cables offer reliable performance and a long service life.

Summary

Multimode 50/125 OM3 fiber optic cables from CableLeader are the ideal choice for high-speed data transmission in enterprise networks, data centers, and other demanding environments. With their superior performance, reliability, and compatibility, these cables provide a future-proof solution for your networking needs. Trust CableLeader for your OM3 fiber optic cable requirements and experience the benefits of cutting-edge technology and exceptional value.

Multimode 50/125 OM3 Fiber Optic Cable FAQ

What is 50/125 OM3?

The 50/125 OM3 fiber optic cable, also known as laser-optimized multimode fiber, features a 50-micron core and 125-micron cladding. It is designed for high-bandwidth applications, supporting 10 Gigabit Ethernet up to 300 meters, as well as 40G and 100G up to 100 meters. OM3 cables have an aqua jacket color and are optimized for use with 850nm VCSEL laser light sources.

What is the difference between 50/125 and 62.5/125 multimode fiber?

The main difference lies in their bandwidth capabilities. The smaller 50-micron core of 50/125 fiber provides higher modal bandwidth at 850nm, making it ideal for high-speed inter/intra-building connections. 50/125 fiber offers three times the bandwidth of standard 62.5/125 fiber, enabling longer transmission distances for high data rates like 10 Gigabit Ethernet.

Is 50/125 single mode or multimode?

50/125 refers to the core/cladding diameter ratio and indicates a multimode fiber. Due to its larger core diameter, multimode fibers exhibit more attenuation than single-mode fibers but can support higher data rates over shorter distances.

What is the wavelength of 50/125 fiber?

Multimode 50/125 fibers are optimized for 850nm and 1310nm wavelengths. The 850nm wavelength is commonly used for Gigabit applications as it provides higher bandwidth over shorter distances.

What is OM3 multimode?

OM3 is a laser-optimized 50-micron multimode fiber with an Effective Modal Bandwidth (EMB) of 2000 MHz/km at 850nm. It supports 10 Gigabit Ethernet up to 300 meters and can also handle higher data rates like 40G and 100G over shorter distances, making it suitable for high-speed data center and enterprise network applications.

Is OM3 50 micron?

Yes, OM3 fiber has a core diameter of 50 microns. This smaller core size, compared to the older 62.5-micron multimode fibers, enables higher modal bandwidth and longer transmission distances for high data rates.

What is the difference between 50 micron OM3 and OM4?

The primary difference between OM3 and OM4 multimode fibers lies in their modal bandwidth. OM4 provides a higher modal bandwidth of 4700 MHzĀ·km at 850nm, compared to 2000 MHzĀ·km for OM3. This higher bandwidth allows OM4 to support longer transmission distances for high data rates like 40G and 100G Ethernet.
