Mini DisplayPort to DVI

Explore Cable Leader's Mini DisplayPort to DVI cables for HD video quality. Perfect for Thunderbolt to DVI, mDP to DVI connections. Shop now!

4 Items

chevron
  • Position
  • Boot Type
  • Name
  • Price
  • Color
  • Connector
  • Length
  • Connector
  • Cable Gauge
  • Conductors
  • Resolutions Supported
  • Capacity
  • Amps
  • Jacket
  • Best Sellers
  • Revenue
  • Most Viewed
  • Now in Wishlists
  • Reviews Count
  • Top Rated
  • New
  • Biggest Saving
  • Price: low to high
  • Price: high to low
Mini DisplayPort to DVI Cable 32AWG
SKU: DP105-8106

6ft Mini DisplayPort to DVI Cable 32AWG

1
$8.30
2
$7.81
20
$7.32
40
$6.83
$8.30
Mini DisplayPort to DVI Cable 32AWG
SKU: DP105-8110

10ft Mini DisplayPort to DVI Cable 32AWG

1
$9.20
2
$8.66
20
$8.12
40
$7.57
$9.20
Mini DisplayPort to DVI Cable 32AWG
SKU: DP105-8103

3ft Mini DisplayPort to DVI Cable 32AWG

1
$7.23
2
$6.80
20
$6.38
40
$5.95
$7.23
Mini DisplayPort to DVI Cable 32AWG
SKU: DP105-8115

15ft Mini DisplayPort to DVI Cable 32AWG

1
$10.54
2
$9.92
20
$9.30
40
$8.68
$10.54

4 Items

Show
chevron
  • 10
  • 20
  • 30

More About Mini DisplayPort to DVI



Explore the advanced connectivity options with Cable Leader's Mini DisplayPort to DVI cables, designed to seamlessly link your Mini DisplayPort or Thunderbolt 1&2 devices with DVI displays. Featuring gold-plated connectors for superior transmission and durability, these cables support high-definition resolutions up to 1920 x 1080 at 60Hz. Compliant with DP1.1 specifications and available in multiple lengths, they offer flexible solutions for both professional and personal use, ensuring high reliability and adherence to RoHS environmental standards.


  • Connectors: The robust Mini DisplayPort 20-pin Male to DVI-D Dual Link (24+1 pin) Male connectors ensure a secure, interference-free connection between your devices.
  • Applications or Usage: Ideal for connecting laptops or computers with Mini DisplayPort or Thunderbolt ports to DVI monitors, projectors, and HDTVs.
  • Quality & Safety: Crafted from premium materials, Cable Leader's cables are designed for durability and high performance, ensuring a stable connection and crystal-clear display.

Whether upgrading your home entertainment system or professional workspace, Cable Leader's Mini DisplayPort to DVI cables are the perfect solution for a high-quality, reliable display connection.


The Ultimate Guide to Mini DisplayPort to DVI Cables: Improving Your Digital Display Experience



Introduction

In the digital age, the quality of your video display can significantly impact your viewing experience, whether for professional presentations, gaming, or streaming. The Mini DisplayPort to DVI cable emerges as a crucial component in achieving pristine video quality by connecting Mini DisplayPort or Thunderbolt-enabled devices to DVI monitors or displays. This comprehensive guide delves into the world of Mini DisplayPort to DVI cables, offering insights into their functionality, specifications, and applications.


Understanding Mini DisplayPort to DVI Cables



Enhanced Specifications for Superior Performance

The Mini DisplayPort to DVI cables 32AWG is engineered to meet the DP1.1 specification, ensuring compatibility with a wide range of devices and displays. This cable is designed to connect your MacBook Pro, MacBook Air, iMac, or any computer device equipped with a Mini DisplayPort or Thunderbolt 2 connector directly to monitors or projectors with a DVI input.

Key Specifications

High Resolution Support: Capable of supporting resolutions up to 1920 x 1080@60Hz, it guarantees the delivery of clear, high-definition video quality for an immersive viewing experience.
Gold-plated Connector: The inclusion of a gold-plated connector not only enhances the aesthetic appeal but also provides superior transmission, high reliability, and durability. It ensures a stable connection that minimizes signal loss and interference.
Compliance with RoHS Directive: Adhering to the RoHS directive, the cable is manufactured with environmentally friendly materials, emphasizing Cable Leader's commitment to sustainability without compromising on quality.


Connectors: Mini DisplayPort 20-pin Male, DVI-D Dual Link (24+1 pin) Male
Available Lengths: 3 FT, 6 FT, 10 FT, 15 FT
Brand: Cable Leader

Details About Connectors

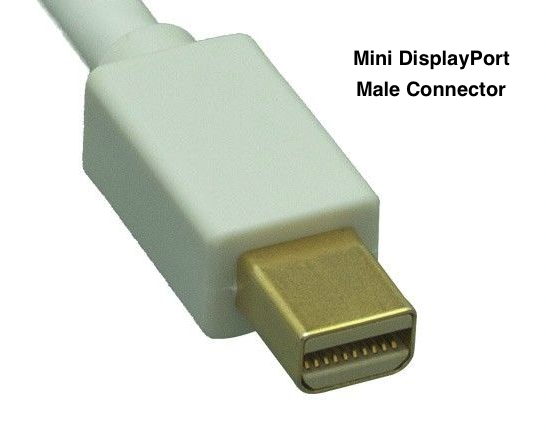

Connector A: Mini DisplayPort Male


The Mini DisplayPort Male connector is a compact version designed for audio-visual devices. It supports video and audio output, making it versatile for connecting laptops or computers to monitors and projectors. It is also compatible with Thunderbolt ports to connect with MacBook Pro, MacBook Air, iMac, or any computer device.


History of Mini DisplayPort

The Mini DisplayPort, a smaller version of the DisplayPort interface, was introduced by Apple in October 2008. By early 2013, it was standard on all new Apple Macintosh computers and the LED Cinema Display. Starting in 2016, Apple shifted towards the USB-C connector, phasing out the Mini DisplayPort. Despite this, the Mini DisplayPort remains present in some PC hardware and notebooks from various manufacturers.


 Mini DisplayPort Female Port

Mini DisplayPort Male Plug
 Mini DisplayPort Male Plug




Technical Specifications:


Connector Type: Mini DisplayPort (mDP).
Version: Supports various versions of the DisplayPort standard, including 1.2, which allows for resolutions up to 4K at 60Hz, multi-stream transport (MST) for daisy-chaining multiple monitors, and audio pass-through.
Pin Configuration: Features 20 pins.
Signal Type: Digital audio and video. It supports HDCP (High-bandwidth Digital Content Protection) for DRM (Digital Rights Management) protected content playback.
Physical Dimensions: Smaller than the original DisplayPort connector, designed for use with laptops and other portable devices where space is at a premium.
Cable Type: Typically connected to a cable with a Mini DisplayPort Male Plug on one end, with various types of connectors on the other end (e.g., Mini DisplayPort, HDMI, DVI, VGA) depending on the desired output.

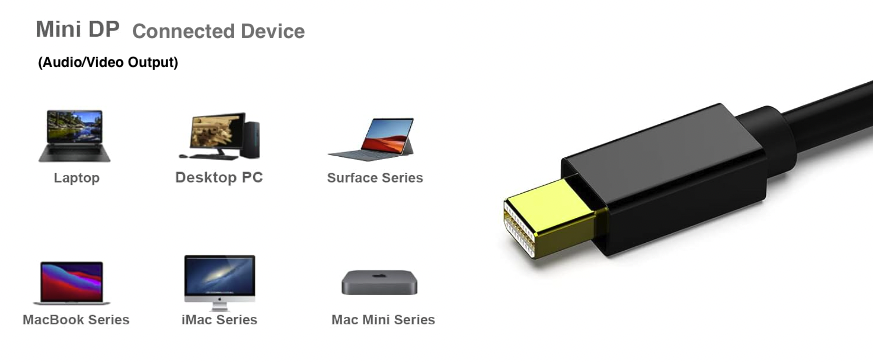

Connected Devices:



Source Devices for Singal Output:
Laptops: Many laptops, especially older models from Apple (such as MacBooks from late 2008 to 2015) and certain models from Microsoft (like the Surface Pro series), feature a Mini DisplayPort for video output.
Desktops: Some desktop computers and all-in-one PCs, including the Mac Mini and certain high-end PCs designed for professional graphics work.
Tablets: High-end tablets like the Microsoft Surface Pro series, which can be used for professional applications that require external display connectivity.
Usage Scenarios:
Professional Workstations: For connecting high-resolution monitors to laptops and desktops in graphic design, video editing, and other professional applications that require precise color and detail.
Home Entertainment: Connecting laptops or tablets to TVs or projectors for streaming video, gaming, or displaying presentations.
Gaming: Linking gaming laptops or desktops to high-refresh-rate or high-resolution monitors for an enhanced gaming experience.

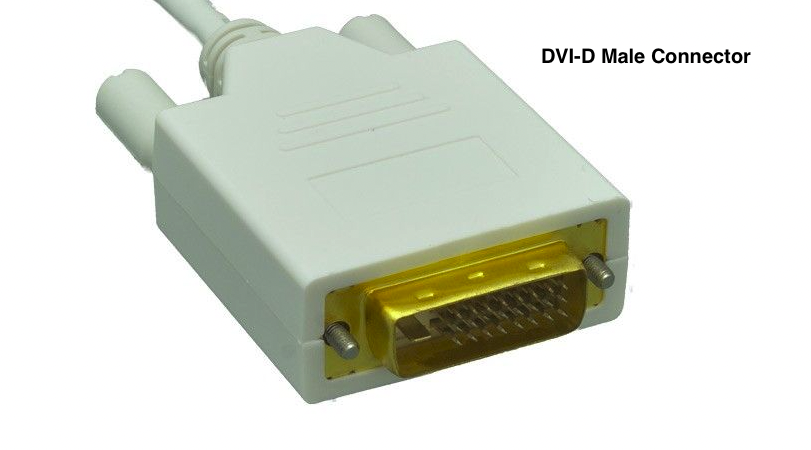

Connector B: DVI-D Male Plug


The DVI-D (Digital Visual Interface - Digital) plug is designed exclusively for transmitting digital video signals. Unlike its counterpart, the DVI-I (Integrated Digital and Analog) connector, which supports both digital and analog signals, DVI-D connectors do not accommodate analog transmission, making them specifically suited for digital displays. Here are the technical details and the devices commonly used with DVI-D connections:


Technical Specifications

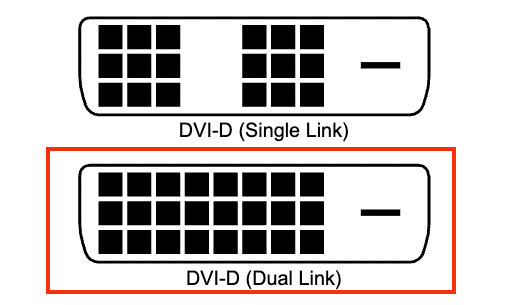

Pin Configuration: DVI-D connectors come in two variants: Single-Link and Dual-Link. Single-Link DVI-D supports resolutions up to 1920x1200 at 60Hz, utilizing 18 pins. Dual-Link DVI-D uses 24 pins and supports higher resolutions, up to 2560x1600 at 60Hz, by providing a higher bandwidth.
Signal Type: Purely digital video signals, without support for analog video.
Connector Type: DVI-D connectors are distinguished by their pin configuration and lack the four additional pins around the horizontal flat blade found on DVI-I connectors, which are used for analog signals.


Find our products:

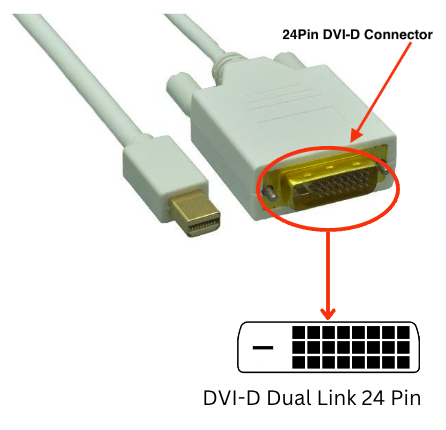

Cable Leader Product Mini DisplayPort to Dual Link DVI-D Connector

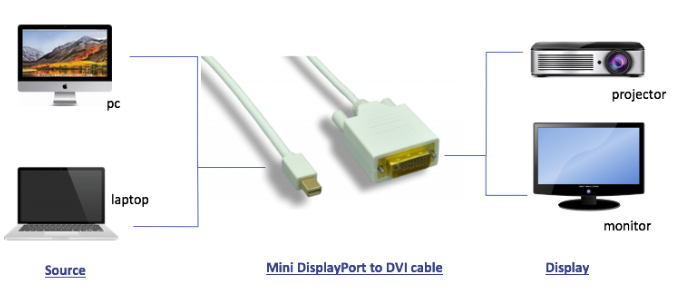

Mini DisplayPort to DVI cable





Devices for signal Input
Source Devices:
Graphics Cards: Many graphics cards, especially those produced before the widespread adoption of HDMI and DisplayPort, feature DVI-D outputs.
Computers and Laptops: Desktop and laptop computers with DVI-D ports for connecting to digital monitors.
DVD Players and Other Media Devices: Some media devices include DVI-D for connecting to high-definition displays.
Display Devices:
Monitors: LCD and LED monitors with DVI-D inputs are common, especially in models focused on professional, gaming, and high-resolution displays.
Projectors: Digital projectors that accept DVI-D inputs, suitable for presentations and home cinema setups that require digital input.
HDTVs: While HDMI has largely taken over as the standard for HDTV connections, some HDTVs still include DVI-D inputs for compatibility with devices that output DVI-D signals.
Usage Scenarios
High-Resolution Displays: DVI-D Dual-Link is particularly useful for connecting devices to high-resolution monitors, ensuring the transmission of high-quality digital video signals without the need for digital-to-analog conversion.
Professional and Gaming Setups: DVI-D is often used in professional environments where high-resolution displays are crucial, as well as in gaming setups that require precise and high-quality digital video outputs.



Applications and Advantages



Mini DisplayPort to DVI cables, particularly those specified as 32AWG (American Wire Gauge), are designed to connect devices with Mini DisplayPort (mDP) outputs to displays featuring DVI inputs. The 32AWG designation refers to the thickness of the wire used inside the cable, with 32AWG being relatively thin, offering flexibility while still supporting the necessary bandwidth for DVI video signals. These cables are commonly used in various applications, ranging from professional workstations to personal computing and entertainment setups. Here's an expansion on their applications and the devices they can connect, including MacBooks, Thunderbolt-equipped devices, and Microsoft Surface products:

Applications


Professional and Home Offices: Connecting laptops or desktops to external monitors for extended desktops or mirrored displays, enhancing productivity with additional screen real estate or larger viewing formats for presentations and detailed work.
Gaming: Gamers with laptops or desktops that only have mDP outputs can use these cables to connect to high-definition DVI monitors, ensuring high-quality video output for an immersive gaming experience.
Entertainment: Streaming video from a computer to a larger DVI-equipped screen or projector for movies, shows, or other media, especially in home cinema setups.
Design and Visualization: For professionals in graphic design, video editing, and CAD applications, connecting to high-resolution DVI monitors can provide the necessary detail and color accuracy for their work.



Connecting Devices

MacBooks: Older MacBook models that come with Mini DisplayPort can use these cables to connect to DVI monitors. This includes certain MacBook, MacBook Pro, and MacBook Air models released before Apple transitioned to Thunderbolt and USB-C ports. While Thunderbolt ports on newer MacBooks can also connect to DVI displays using mDP to DVI cables due to Thunderbolt's backward compatibility with mDP, the direct application here is with the actual mDP.


Thunderbolt Devices: Devices equipped with Thunderbolt 1 and 2 ports, which share the same physical connector as Mini DisplayPort, can use these cables to connect to DVI displays. This includes a wide range of devices beyond MacBooks, such as certain PCs and docking stations, allowing for the use of older DVI-equipped monitors with the latest technology.



Microsoft Surface Devices: Certain models of the Microsoft Surface line, such as the Surface Pro and Surface Book, feature Mini DisplayPort outputs. These devices can be connected to DVI monitors using mDP to DVI cables, enabling their use in a wide range of professional applications.
Graphics Cards and Workstations: Desktops and workstations with Mini DisplayPort outputs can utilize these cables to connect to DVI monitors. This is particularly useful in multi-monitor setups where different types of display inputs are used across monitors.

When using Mini DisplayPort to DVI cables, it's important to note that DVI does not carry audio signals, so an additional audio connection might be necessary if sound output is required on the connected display. Additionally, the choice of a 32AWG cable offers a good balance between flexibility and the ability to maintain signal integrity over typical distances used in personal and professional settings.







Quality and Durability


Cable Leader's Mini DisplayPort to DVI cables are manufactured with premium materials, ensuring durability and high performance. The cables support high-resolution video transfer without signal loss, ensuring a stable and clear display.


Choosing the Right Cable


When selecting a Mini DisplayPort to DVI cable, consider the required length and ensure compatibility with your devices. Cable Leader offers various lengths to suit different setups, providing flexibility in arranging your workspace or entertainment system.

Mini DisplayPort to DVI cables are essential for users looking to connect modern devices to DVI-equipped displays. With their high-quality construction and performance, Cable Leader's cables ensure a superior video experience. Whether for professional use, gaming, or watching movies, these cables offer a reliable solution for high-definition video transmission.




FAQs: Mini DisplayPort to DVI Cables



Q: Can I use a Mini DisplayPort to DVI cable with Thunderbolt devices?
A: Yes, Mini DisplayPort cables are compatible with Thunderbolt and Thunderbolt 2 ports, allowing for a seamless connection to DVI displays.
Mini DisplayPort to DVI Cables

You can also use Thunderbolt adapter for connections:
Mini Displayport 1.2 Male (Thunderbolt™ Compatible) to 4K HDMI+DVI+VGA Female Passive 3-in-1 Adapter Cable


Q: What resolution do these cables support?
A: These cables support resolutions up to 1920 x 1080 at 60Hz, ensuring clear and high-quality video output for your display needs.


Q: Are these cables plug-and-play?
A: Absolutely, Mini DisplayPort to DVI cables are designed for easy use. They require no additional software or drivers, offering a straightforward plug-and-play experience.

Q: Can I connect my MacBook to a DVI monitor using this cable?
A: Yes, you can connect your MacBook Pro, MacBook Air, iMac, or any device with a Mini DisplayPort or Thunderbolt 1 or2 connector to a DVI monitor, enhancing your viewing or work area.
The differences between Mini DisplayPort (mDP), Thunderbolt 1 & 2 support Mini DisplayPort, and Thunderbolt 3 and above only support Type-C connector.


Q: Do these cables come with gold-plated connectors?
A: Yes, the connectors are gold-plated to provide superior transmission, high reliability, and durability, ensuring a stable connection over time.


Q: What lengths are available for these cables?
A: Cable Leader offers these cables in various lengths including 3 FT, 6 FT, 10 FT, and 15 FT to accommodate different setup requirements.


Q: Will using a Mini DisplayPort to DVI cable affect video quality?
A: No, these cables are designed to maintain the integrity of the video signal, ensuring that the quality is preserved from source to display without degradation.

Q: Can DisplayPort be converted to DVI?
A: Yes, DisplayPort signals can be converted to DVI using an adapter or cable specifically designed for this purpose, allowing compatibility between devices with these different ports.


Mini DisplayPort to DVI Cables
Mini DisplayPort to DVI Adapters

Thunderbolt adapter for connections:
Mini Displayport 1.2 Male (Thunderbolt™ Compatible) to 4K HDMI+DVI+VGA Female Passive 3-in-1 Adapter Cable

Q: Is Mini DisplayPort the same as DVI?
A: No, Mini DisplayPort and DVI are different interfaces. Mini DisplayPort transmits audio and video signals, while DVI is primarily for video. However, adapters can bridge the connectivity between them.




Q: What is the difference between active and passive Mini DisplayPort to DVI?
A: Active adapters convert the signal from Mini DisplayPort to DVI, supporting all DVI monitors, including dual-link setups for higher resolutions. Passive adapters rely on dual-mode DisplayPort (DP++) ports to directly output DVI signals, suitable for single-link DVI monitors.

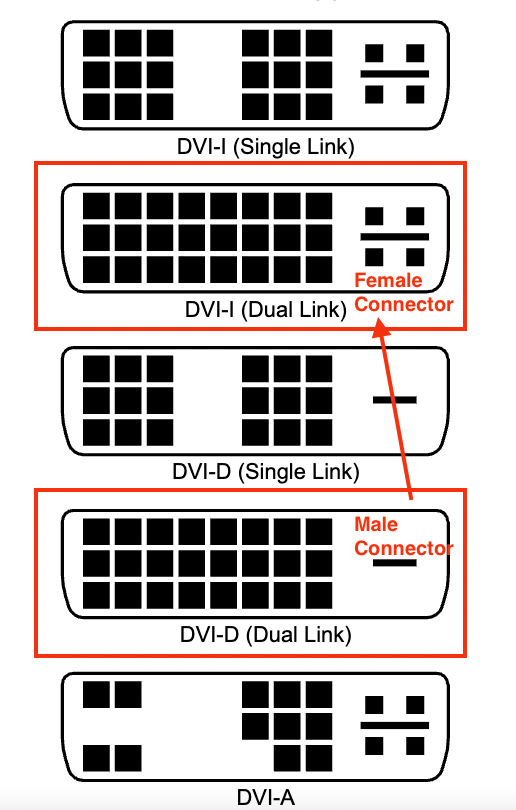

Q: Can I plug DVI-D connector into a DVI-I port?
A: Yes, you can plug a DVI-D (Digital) connector into a DVI-I (Integrated Digital and Analog) port. The DVI-I port is designed to accept both digital and analog signals, which means it has the necessary pins to accommodate the digital-only signal from a DVI-D connector. The DVI-I port includes the full pin set for both digital and analog connections, allowing it to be compatible with both DVI-D and DVI-A (Analog) connectors.
The key difference between the connectors is that DVI-D connectors are missing the four pins around the flat blade that are used for the analog signal in DVI-I connectors. Since those pins are not needed for a digital signal, the DVI-D connector can fit into a DVI-I port without issue, using only the digital pins for the connection. However, the reverse is not possible—you cannot fit a DVI-I connector into a DVI-D port due to the extra pins on the DVI-I connector.



Q: Does Thunderbolt work on DVI?
A: Yes, Thunderbolt 1 & 2 ports can connect to Mini DisplayPort Cable connecting DVI Plug, as the Thunderbolt 1&2 interface is compatible with Mini DisplayPort connections.

.



Q: Can I use Thunderbolt port for an external monitor?
A: Yes, Thunderbolt ports can be used to connect external monitors, including those requiring HDMI, DVI, or DisplayPort connections with the appropriate adapter.

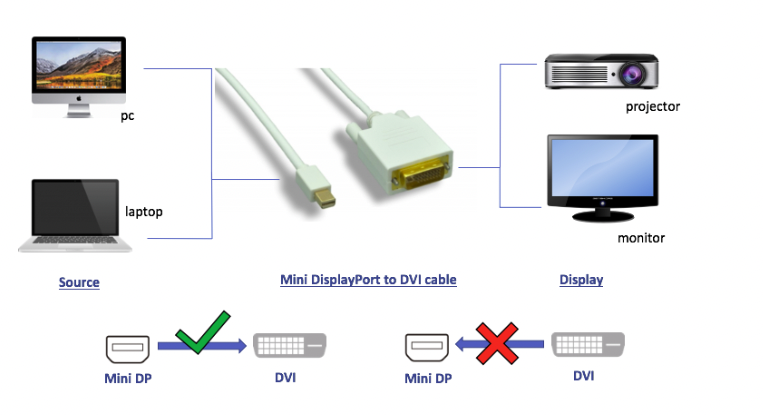

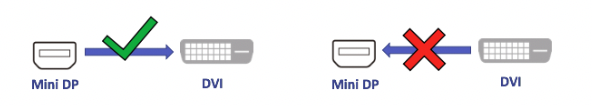

Q: Is Mini DisplayPort to DVI cable connectivity for one way or reversible?
A: A mini-DisplayPort to DVI connection is one way, meaning it only allows the video signal to transmit from the mini-DisplayPort source to the DVI display. It is not reversible, so you cannot use it to connect a DVI source to a mini-DisplayPort display.



Q: Is mini-DP the same as DP?
A: Mini DisplayPort (mini-DP) has the same functionality as the standard DisplayPort (DP) but in a smaller form factor, making it ideal for laptops and other portable devices.

Q: What does an mDP cable do?
A: An mDP cable transmits audio and video signals from a Mini DisplayPort source to a compatible display, supporting high-definition content and digital sound.
