Mini DisplayPort to Mini DisplayPort

Shop high-quality Mini DisplayPort to Mini DisplayPort cables. Perfect for MacBook, iMac connections, supporting up to 4K resolutions. Durable, RoHS compliant.

4 Items

chevron
  • Position
  • Boot Type
  • Name
  • Price
  • Color
  • Connector
  • Length
  • Connector
  • Cable Gauge
  • Conductors
  • Resolutions Supported
  • Capacity
  • Amps
  • Jacket
  • Best Sellers
  • Revenue
  • Most Viewed
  • Now in Wishlists
  • Reviews Count
  • Top Rated
  • New
  • Biggest Saving
  • Price: low to high
  • Price: high to low

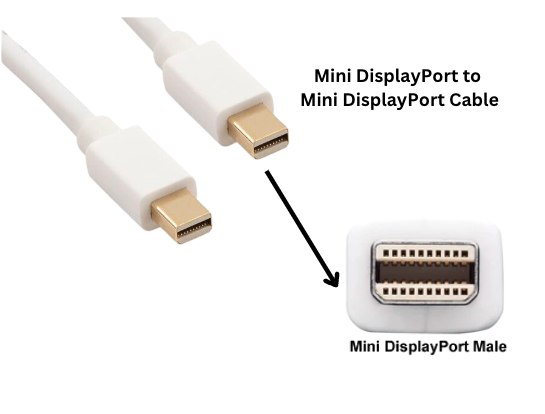

3ft Mini DisplayPort Male to Male Cable, white color, gold-plated connectors, for high-resolution 4K display connections.
SKU: DP111-8103

3ft Mini DisplayPort to Mini DisplayPort Cable, 4K@60Hz, DP1.2, Mini DP Monitor Cable

1
$2.90
2
$2.62
20
$2.48
40
$2.35
$2.90
6ft Mini DisplayPort Male to Male Cable, white color, gold-plated connectors, for high-resolution 4K display connections.
SKU: DP111-8106

6ft Mini DisplayPort to Mini DisplayPort Cable, 4K@60Hz, DP1.2, Mini DP Monitor Cable

1
$3.26
2
$2.95
20
$2.79
40
$2.64
$3.26
10ft Mini DisplayPort Male to Male Cable, white color, gold-plated connectors, for high-resolution 4K display connections.
SKU: DP111-8110

10ft Mini DisplayPort to Mini DisplayPort Cable, 4K@60Hz, DP1.2, Mini DP Monitor Cable

1
$3.84
2
$3.48
20
$3.29
40
$3.11
$3.84
15ft Mini DisplayPort Male to Male Cable, white color, gold-plated connectors, for high-resolution 4K display connections.
SKU: DP111-8115

15ft Mini DisplayPort to Mini DisplayPort Cable, 4K@60Hz, DP1.2, Mini DP Monitor Cable

1
$5.11
2
$4.83
20
$4.54
40
$4.26
$5.11

4 Items

Show
chevron
  • 10
  • 20
  • 30

More About Mini DisplayPort to Mini DisplayPort



Discover the ultimate connection with our Mini DisplayPort to Mini DisplayPort Cables, designed for high-definition audio and video transfer. These cables are perfect for connecting your MacBook Pro, MacBook Air, iMac, or any device equipped with Mini DisplayPort or Thunderbolt 2 to HD monitors. Our cables come in various lengths, supporting resolutions up to 4K@60Hz for lengths up to 10FT and 4K@30Hz for 15FT cables, ensuring you get the best visual experience.

  • Connectors: Mini DisplayPort to Mini DisplayPort, featuring gold-plated connectors for unmatched transmission quality.
  • Applications: Ideal for video streaming, gaming, and connecting high-performance devices.
  • Quality & Safety: Made with premium material, ensuring High Quality, Durability, and compliance with RoHS directive.






The Evolution of Mini DisplayPort Technology: Premium Mini DisplayPort to Mini DisplayPort Cables



The Mini DisplayPort (mDP) interface, introduced by Apple in 2008, marked a significant leap forward in video and audio connection technology. Initially designed to streamline the connectivity of Apple's product line, the Mini DisplayPort quickly gained traction across various platforms due to its compact size and powerful capabilities. As technology evolved, the DisplayPort 1.2 specification, which Mini DisplayPort adheres to, brought enhancements such as higher resolutions, increased color depths, and the ability to daisy-chain multiple monitors.




Technical Details and Specifications


Mini DisplayPort to Mini DisplayPort cables is designed to connect two devices equipped with Mini DisplayPort or Thunderbolt 2 interfaces. These cables are meticulously crafted with 32AWG conductors, ensuring optimal signal transmission and reliability. The cables can support resolutions up to 4K@60Hz for lengths up to 10FT, and 4K@30Hz for 15FT cables, catering to the needs of high-definition video applications.

The connectors are gold-plated, a testament to their durability and superior transmission capabilities. This design choice not only enhances the aesthetic appeal of the cables but also contributes to their long-term performance and resistance to corrosion.


Mini DisplayPort Connector Technical Details and Specifications:



Compliant with DisplayPort 1.2 and 1.2a specifications.

Supports resolutions up to 4K, facilitating high-definition video and audio transmission.
Features a compact design suitable for devices where space is limited.
Utilizes gold-plated connectors to enhance transmission quality and ensure durability.
Designed with various AWG sizes, including 32 AWG for standard applications and 28 AWG for higher performance needs.

Connected Devices:
It is widely adopted in Apple devices such as MacBook, MacBook Pro, MacBook Air, iMac, and Mac Mini.
Found in PCs and laptops from manufacturers like Dell, Lenovo, and Microsoft.
Compatible with adapters and converters, enabling connections to DisplayPort, HDMI, DVI, and VGA interfaces.


Applications:

Used by professionals in graphic design, video editing, and photography for connecting high-resolution monitors.
Suitable for gaming, supporting high refresh rates and resolutions for an immersive experience.
Employed in business and educational settings for projectors and multimedia presentations due to its versatility.

Usage and Applications

The versatility of Mini DisplayPort to Mini DisplayPort cables extends across various domains, from professional settings to gaming and entertainment. They are instrumental in connecting high-end computing devices, such as MacBook Pro, MacBook Air, and iMacs, to HD monitors, providing a seamless bridge for high-definition audio and video signals.



These cables are particularly beneficial for professionals involved in graphic design, video editing, and gaming, where visual clarity and color accuracy are paramount. Moreover, the compatibility with Thunderbolt 2 technology allows for data transfer capabilities, making these cables a comprehensive solution for multimedia and data-intensive applications.

Mini DisplayPort to Mini DisplayPort cables represents a critical component in modern digital connectivity, embodying the advancements in display technology over the years. Their development reflects a commitment to providing users with high-quality, reliable, and versatile connection solutions. As the digital landscape continues to evolve, the Mini DisplayPort standard stands as a testament to innovation, driving the future of high-definition multimedia experiences.



FAQ about Mini DisplayPort to Mini DisplayPort Cable



Q: What is a Mini DisplayPort to Mini DisplayPort Cable?
A: A Mini DisplayPort to Mini DisplayPort cable is a connectivity solution designed to transmit high-definition audio and video signals between two devices equipped with Mini DisplayPort interfaces, such as laptops, desktops, and monitors.


Q: Can I connect a MacBook to a 4K monitor using a Mini DisplayPort to Mini DisplayPort cable?
A: Yes, you can connect your MacBook Pro, MacBook Air, or iMac to a 4K monitor using a Mini DisplayPort to Mini DisplayPort cable. Cables up to 10FT support resolutions up to 4K@60Hz, while 15FT cables support resolutions up to 4K@30Hz.


Q: Are Mini DisplayPort and Thunderbolt 2 the same?
A: While Mini DisplayPort and Thunderbolt 2 share the same physical connector, Thunderbolt 2 offers additional capabilities like faster data transfer rates. However, Mini DisplayPort cables can ONLY be used for audio and video transmission with Thunderbolt 2 ports.


Q: How do I choose the right length for a Mini DisplayPort to Mini DisplayPort cable?
A: Choose a cable length based on the distance between your devices. Ensure its long enough to connect them comfortably without causing strain on the cable or connectors.
3ft Mini DisplayPort to Mini DisplayPort Cable 32AWG 4K Resolution Ready
6ft Mini DisplayPort to Mini DisplayPort Cable 32AWG 4K Resolution Ready
10ft Mini DisplayPort to Mini DisplayPort Cable 32AWG 4K Resolution Ready
15ft Mini DisplayPort to Mini DisplayPort Cable 32AWG 4K Resolution Ready


Q: Are Mini DisplayPort cables compatible with all devices?
A: Mini DisplayPort cables are compatible with any device that has a Mini DisplayPort or Thunderbolt 2 interface. Check your device's specifications to ensure compatibility.


Q: Can Mini DisplayPort to Mini DisplayPort cables carry audio signals?
A: Yes, these cables are designed to carry both high-definition audio and video signals from your computer to a monitor, enabling a comprehensive multimedia experience.

Q: What does a gold-plated connector offer?
A: Gold-plated connectors provide superior transmission quality, high reliability, and durability. They also resist corrosion better than non-plated connectors.

Q: Are Mini DisplayPort to Mini DisplayPort cables durable?
A: Yes, these cables are made with premium materials and are designed to be durable. The use of gold-plated connectors and compliance with RoHS directives ensure long-lasting performance.

Q: How can I ensure the cable supports 4K resolution?
A: To ensure 4K support, select a cable that is compliant with the DP1.2 specification. Cables up to 10FT generally support up to 4K@60Hz, suitable for ultra-high-definition video quality.
This comparison should provide a clear overview of how DisplayPort technology has evolved over time:




Please note that this table represents a simplified comparison, and each version may include additional features not listed here. DisplayPort technology continues to evolve, offering higher bandwidth, better resolutions, and more features to support the increasing demands of modern displays and devices.

Q: Is Mini DisplayPort as good as HDMI?
A: Mini DisplayPort and HDMI serve similar functions but have different features. Mini DisplayPort can support resolutions up to 4K and offers a compact connector suitable for many devices. HDMI is more universally used and supports similar resolutions along with Ethernet data and audio return channel capabilities. The choice depends on your device's compatibility and your specific needs.
Find our products:
Mini DisplayPort to Mini DisplayPort Cables
Mini DisplayPort to HDMI


Q: Is Mini DisplayPort being phased out?
A: While USB-C and Thunderbolt 3/4 ports are becoming more common, Mini DisplayPort still remains relevant, especially in devices designed for professional use and older models. It's not being phased out imminently, but the trend is leaning towards newer standards.
Here's a table comparing Thunderbolt 1 & 2 versus Thunderbolt 3 & 4, highlighting their key features and differences:

Feature  Thunderbolt 1 & 2  Thunderbolt 3 & 4
Speed  Thunderbolt 1: 10 Gbps  Thunderbolt 3: Up to 40 Gbps
  Thunderbolt 2: 20 Gbps  Thunderbolt 4: Up to 40 Gbps
Connector Type  Mini DisplayPort  USB-C
Power Delivery  Up to 10W for Thunderbolt 1 & 2  Up to 100W for Thunderbolt 3 & 4
Video Support  Dual DisplayPort 1.1 (Thunderbolt 2)  Dual 4K or Single 8K (Thunderbolt 3)
    Dual 4K or Single 8K (Thunderbolt 4)
Data Channels  2 x 10 Gbps (Thunderbolt 1)  4 x 10 Gbps (Thunderbolt 3 & 4)
  2 x 20 Gbps (Thunderbolt 2)
PCI Express Support  PCIe 2.0  PCIe 3.0 (Thunderbolt 3)
    PCIe 4.0 (Thunderbolt 4)
Daisy-Chaining  Up to 6 devices  Up to 6 devices
Backward Compatibility  Partial, with adapter  Full of Thunderbolt 3 & 4 devices, partial with USB devices
Security  Basic  Enhanced with Thunderbolt 3 & 4 (Intel VT-d based DMA protection)




Enhanced with Thunderbolt 3 & 4 (Intel VT-d based DMA protection)

This comparison illustrates the evolution of Thunderbolt technology from versions 1 & 2 to 3 & 4, showing significant improvements in speed, power delivery, video support, and security features. Thunderbolt 3 & 4's adoption of the USB-C connector also marks a shift towards a more universal and versatile interface.

Q: Can Mini DisplayPort support 2 monitors?
A: Mini DisplayPort can support multiple monitors through daisy-chaining or using a hub, provided your device supports Multi-Stream Transport (MST) and the monitors are daisy-chain compatible.

Q: What is a Mini DisplayPort cable?
A: A Mini DisplayPort cable is used to connect devices with Mini DisplayPort interfaces to monitors or displays. It transmits high-definition audio and video signals and is compatible with Thunderbolt 2 ports.

Q: Is DisplayPort 1.2 the same as Mini DisplayPort?
A: DisplayPort 1.2 refers to the specification that defines the performance standards, while Mini DisplayPort refers to the physical connector type. Mini DisplayPort connectors can support DisplayPort 1.2 specifications, enabling high resolutions and refresh rates.

Q: Can you connect DisplayPort to Mini DisplayPort?
A: Yes, you can connect a DisplayPort to a Mini DisplayPort using a compatible cable or adapter. This allows devices with different port types to be connected for audio and video transmission.
Mini DisplayPort to DisplayPort Cable
Mini DisplayPort to Mini DisplayPort Cable


Q: Is Mini DisplayPort bidirectional?
A: Mini DisplayPort itself is designed for unidirectional video and audio transmission from a source (like a computer) to a display. However, the port can support bidirectional data transfer when used with Thunderbolt technology.

Q: Can you get 144Hz with Mini DisplayPort?
A: It depends. We recommend you use a cable support with a higher refresh rate.
Mini DisplayPort to Mini DisplayPort cables, based on the general specifications mentioned for resolutions:
3FT, 6FT, and 10FT cables can support up to 4K@60Hz.
15FT cables can support up to 4K@30Hz.

These specifications suggest that the primary focus is on supporting high-definition resolutions rather than high refresh rates like 144Hz. Typically, achieving a refresh rate of 144Hz is dependent on both the cable quality (including bandwidth and wire gauge) and the capabilities of the connected devices (source and display).
For high refresh rates like 144Hz, especially at resolutions such as 1080p or 1440p, shorter cable lengths and higher quality (e.g., thicker gauge wires, better shielding) are generally recommended to minimize signal degradation. While some Mini DisplayPort cables may support 144Hz at shorter lengths, the documents do not provide explicit details to confirm this capability for the specified cable lengths.
