The Ultimate Guide to Video Cables: Ensuring Premium Quality and Connectivity

Introduction

In the digital age, video cables are pivotal in connecting the world through visuals. Cable Leader's assortment of video cables encompasses a broad spectrum designed to meet every need, from home entertainment setups to professional broadcasting systems. This guide dives deep into the different types of video cables, their connectors, specifications, and how to choose the right cable for your application.

Understanding Video Cables and Their Connectors

Video cables are more than just conduits for transmitting visual data; they are the lifeline of any audio-visual setup. Cable Leader offers an extensive range of cables, including AV Cable, Coaxial Cable, BNC Cable, S Video Cable, Composite Video Cable, Component Video Cable, and RCA Video Cable. Each type serves a unique purpose and setup.
Connectors for Video Cables:

S-Video Cables (Mini-DIN4 Cables / Mini-DIN4 Male to RCA Cables)

Connectors: Mini-DIN4, Mini-DIN4 Male to RCA
Tech Specs: Transmits standard-definition video signals in two channels: brightness and color.
Usage: Ideal for older TVs, DVD players, and gaming consoles.
Applications: Suited for setups requiring straightforward, quality video connections.

Mini-DIN4 cables, commonly known for their use in S-Video connections, feature a small, circular connector with four pins. They are designed to transmit standard-definition video signals by separating the video into two channels: brightness (luminance) and color (chrominance). This separation allows for improved video quality over composite video connections. Mini-DIN4 cables are typically used to connect devices like DVD players, video game consoles, and computers to televisions or monitors that support S-Video input, offering a significant enhancement in image clarity and detail compared to older composite video.

Mini-DIN4 Male to RCA cables serve to convert S-Video signals, which split video into brightness and color components, into composite video format that combines these components into a single signal. This enables devices with S-Video output, like some older computers and video equipment, to connect to devices with RCA input, such as most televisions and projectors, facilitating the use of modern displays with older technology.

Component Video Cables (BNC Component Cables/ RCA Component Cables)

Connectors: BNC Component, RCA Component
Tech Specs: Supports resolutions up to 1080p, splits the video signal into three components for improved color accuracy.
Usage: For HDTVs, Blu-ray players, and high-end projectors.
Applications: Best for home theaters to broadcasting setups, offering high-definition analog video signals.

BNC Component cables use BNC connectors for high-definition video transmission, carrying signals split into multiple channels (typically red, green, and blue) for enhanced quality. Preferred in professional and commercial AV setups due to their secure locking mechanism, they support high-resolution video, making them ideal for applications requiring superior image clarity, such as broadcasting and video editing.

RCA Component cables are designed for transmitting high-definition video signals, split into three separate paths for improved video quality: one for luminance (Y) and two for chrominance (Pb and Pr). These cables use RCA connectors, typically color-coded as red, green, and blue, to ensure correct connections. They're preferred for connecting DVD players, Blu-ray players, and gaming consoles to TVs or monitors, offering clearer and more detailed images compared to standard composite video cables.

Composite Video Cables (BNC Composite Cables / RCA Composite Cables/ BNC to RCA Composite Cables)

Connectors: BNC Composite, RCA Composite, BNC to RCA Composite
Tech Specs: Combines video signal components into one for standard-definition connection.
Usage: Connecting older AV equipment like VCRs and early gaming consoles to TVs.
Applications: Practical for quick setups or devices not supporting higher-resolution connections.

BNC Composite cables utilize BNC connectors to transmit standard-definition video signals through a single channel. This configuration combines all video information (color and brightness) into one signal. Often used in professional and security environments, BNC Composite cables offer a secure, twist-lock connection, ensuring a stable video transmission and making them suitable for applications requiring reliable, straightforward video quality.

RCA Composite cables use RCA connectors for transmitting standard-definition video signals over a single cable, combining both color and brightness information. These cables, typically identified by their yellow connectors, are widely used for connecting video playback devices like DVD players and gaming consoles to televisions. They offer a simple and universal way to connect various audio-visual equipment, making them a staple in home entertainment setups for delivering video content.

BNC to RCA Composite cables are designed to connect devices with BNC outputs to RCA input ports. They facilitate the conversion of a video signal from professional-grade equipment, using a BNC connector, to standard consumer-grade devices that accept RCA connections, typically marked with a yellow plug for composite video. These cables are essential in environments where there is a need to bridge professional and consumer video equipment, ensuring compatibility and seamless transmission of standard-definition video signals.

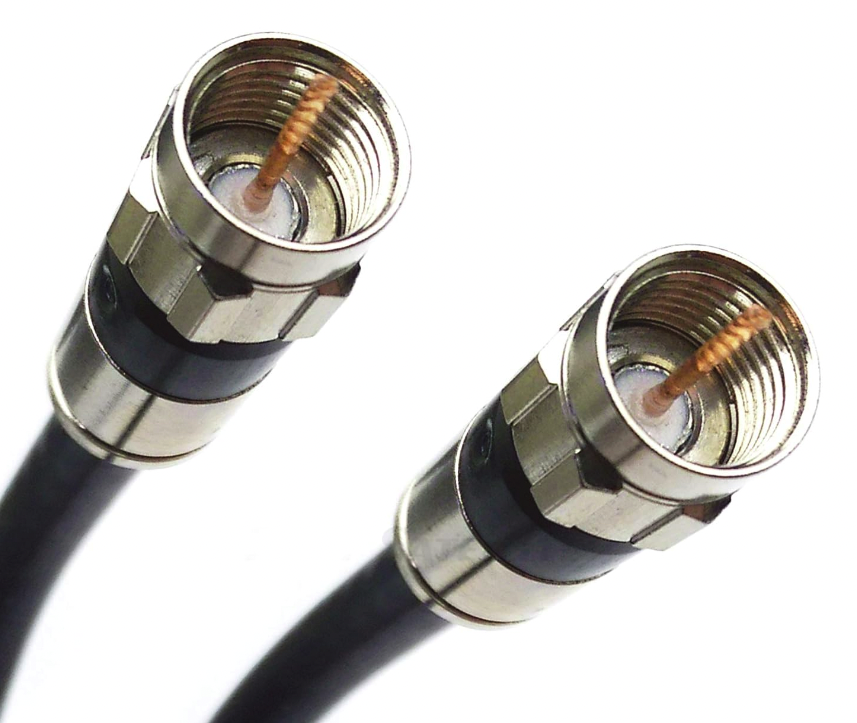

F-Type Cables (Coaxial Cable: RG-6 F-Type / RG-59U F-Type)

Connectors: RG-6 F-Type, RG-59U F-Type
Tech Specs: Suitable for high-frequency digital and analog signals, with RG-6 preferred for lower loss at higher frequencies.
Usage: For television broadcasts, cable internet, and satellite connections.
Applications: Ensures a secure, interference-resistant connection for reliable data flow.

Coaxial Cable

Tech Specs: Coaxial cables, including RG-6 and RG-59 types, are designed for high-frequency transmission. RG-6 is used for cable television, satellite, and broadband internet, offering lower signal loss over longer distances. RG-59 is suited for lower bandwidth applications and shorter runs.
Applications: Essential for television signals, cable internet connections, and satellite reception. Their design minimizes external interference, ensuring a clear signal for both audio and video transmissions.

Length and Specifications

Choosing the right cable length is crucial for maintaining signal integrity and minimizing losses. Cable Leader offers lengths ranging from 3 FT to 1000 FT, catering to both short-distance connections and large-scale installations. The specifications of these cables, including the type of connectors and the cable's length, ensure that every setup can achieve optimal performance.

Applications and Uses

Video cables from Cable Leader are versatile, supporting a plethora of devices and setups. Whether it's for connecting a DVD player to a TV, setting up a professional video editing suite, or ensuring broadcast quality in a television station, the right cable can significantly impact the setup's overall quality and performance.

Quality, Durability, and Safety

Cable Leader's commitment to premium materials and high-quality construction guarantees cables that are not only durable but also safe for long-term use. These cables are designed to withstand the rigors of both residential and commercial environments, ensuring reliable performance and longevity.

Conclusion

Choosing the right video cable is essential for achieving the best visual quality and performance. With Cable Leader's comprehensive range, finding the perfect cable for any application has never been easier. By understanding the different types, connectors, and specifications, you can ensure a seamless and high-quality connection for all your video needs.
This guide has provided an in-depth look at video cables, ensuring you have the knowledge to make informed decisions for your audio-visual requirements. Cable Leader remains your trusted partner in connectivity, offering the best in quality, durability, and performance.

FAQ Section for Video Cable

What is a video cable?
A video cable is used to transmit visual content from a source, such as a computer or media player, to a display device like a TV or monitor.

What cable is used for video?
Common cables used for video include Composite, Component, S-Video, and Coaxial.

What is an AV cable?
An AV (audio/visual) cable transmits sound and picture signals from a source to a display or sound system.

What is an RCA video cable and when should I use it?
A: RCA video cables transmit standard-definition video using composite video transmission. They're ideal for connecting devices like DVD players to TVs in setups not requiring high-definition signals.

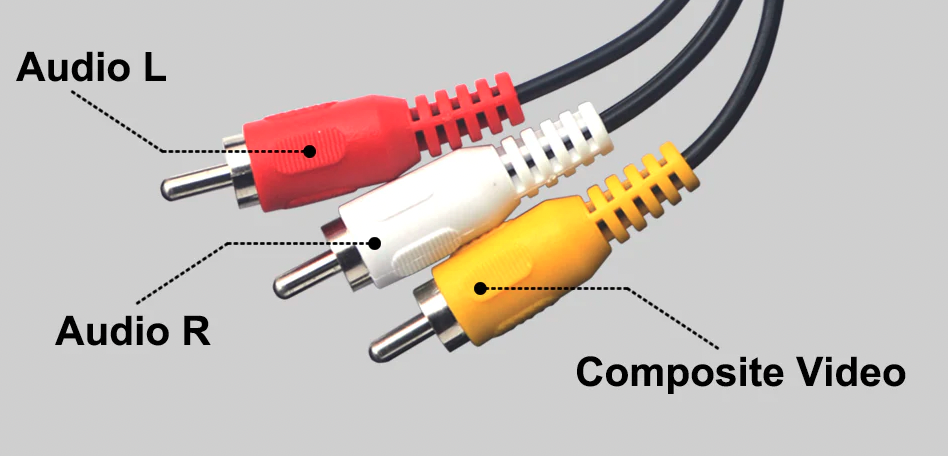

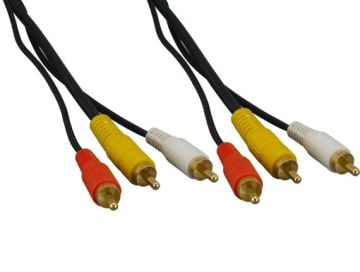

What are the 3 RCA cables for?
The three cables in a typical RCA setup are for transmitting left audio (white), right audio (red), and composite video (yellow).

How do I connect my AV cable to my TV?
Connect the AV cable from your device to the matching color-coded ports on your TV, ensuring the video (yellow) and audio (white and red) connectors match.
You can also use a coaxial cable for Cable TV signal transmission.

What is coaxial cable used for?
Coaxial cable is used for transmitting cable TV, satellite TV, and broadband internet signals.

What's the difference between RG-6 and RG-59 coaxial cables?
A: RG-6 is preferred for digital TV, satellite, and broadband internet due to lower signal loss, while RG-59 is suited for shorter runs and lower frequency applications like analog video.

What is the difference between coaxial cable and regular cable?
Coaxial cable is specifically designed for high-frequency electrical signals with a shielded design, unlike regular electrical cables which may be for power or lower frequency signals.

Do I need a coaxial cable for internet?
Yes, if your internet service is provided via cable internet or if you're connecting to a satellite modem.

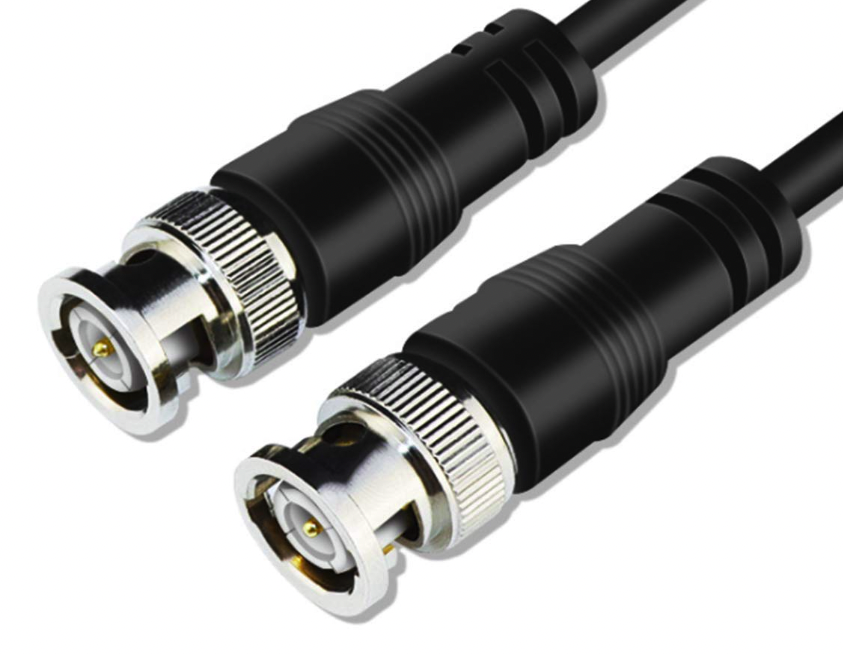

What does BNC cable stand for?
BNC stands for Bayonet Neill-Concelman, a type of connector used on coaxial cables.

Can BNC cables be used for high-definition video?
A: Yes, BNC cables are suitable for both analog and digital high-definition video signals, commonly used in professional environments like broadcasting.

Is BNC and coax cable the same?
BNC is a type of connector for coaxial cables, not a cable type itself. Coaxial cables can use different types of connectors, including BNC.

Is a BNC cable analog or digital?
BNC cables can be used for both analog and digital signals, depending on the specifications of the equipment being connected.

What is the S-Video cable for?
S-Video cables are used for transmitting standard-definition video signals, separating brightness and color for improved image quality.

How do I choose between S-Video, Composite, and Component cables?
A: Choose based on the desired video quality and device compatibility. S-Video is better than Composite but doesn't support HD, whereas Component cables offer the best quality for HD signals.

What is a composite video cable?
A composite video cable transmits video signals combining color and brightness into one, typically using RCA connectors.

What does a component video cable do?
Component video cables transmit video signals divided into three separate channels for improved video quality over composite.

()

Video Cables

Product List

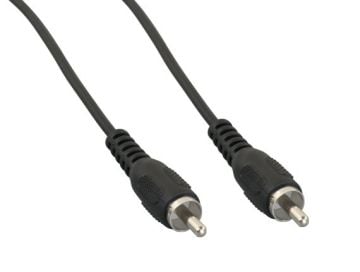

6ft RCA M/M Composite Video Cable

12ft RCA M/M Composite Video Cable

25ft RCA M/M Composite Video Cable

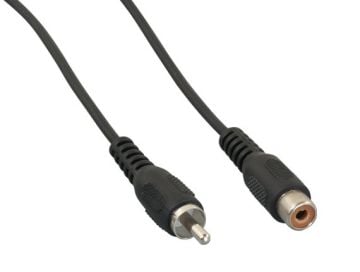

6ft RCA M/F Composite Video Cable

12ft RCA M/F Composite Video Cable

25ft RCA M/F Composite Video Cable

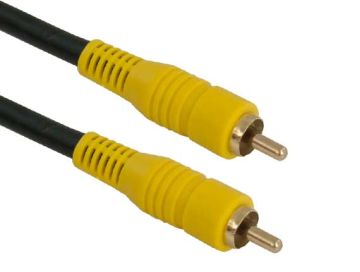

6ft RCA M/M RG-59U Premium Composite Video Cable
