DB25 Male to Female RS232 Serial Port Mini Tester

DB25 Male to Female RS232 Serial Port Mini Tester

The DB25 RS232 Serial Port Mini Tester provides an essential diagnostic solution for technicians and IT professionals working with serial communications. This compact male-to-female adapter delivers powerful insights into signal integrity and communication issues between RS232 devices. With its straightforward design and comprehensive signal monitoring capabilities, this tester becomes an indispensable addition to any technical toolkit.

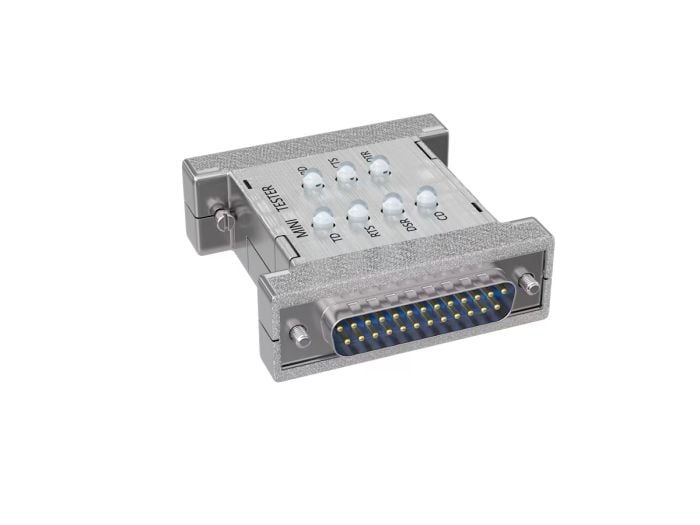

This mini tester features a DB25 male connector on one end and a DB25 female connector on the other, creating a convenient pass-through configuration that allows for real-time signal monitoring without disrupting your existing setup. Simply connect the tester between your serial cable and device to immediately begin diagnosing communication problems. The built-in LED indicators illuminate to display the status of seven critical RS232 signals: Transmitted Data (TD), Request To Send (RTS), Data Set Ready (DSR), Carrier Detect (CD), Received Data (RD), Clear To Send (CTS), and Data Terminal Ready (DTR).

Serial communication issues can be notoriously difficult to troubleshoot without proper equipment. This DB25 mini tester eliminates guesswork by providing visual confirmation of signal activity, allowing you to quickly identify which lines are active and which may be experiencing problems. The immediate visual feedback significantly reduces diagnostic time and helps pinpoint exactly where issues might be occurring in your serial communication chain.

The compact form factor of this RS232 tester makes it particularly valuable in environments where space is limited. Whether you're working in cramped server rooms, behind equipment racks, or with legacy hardware in industrial settings, this mini tester fits easily into tight spaces where larger diagnostic equipment would be impractical. Its small size also makes it highly portable, allowing technicians to carry it in their toolkit without adding significant bulk or weight.

Built with quality materials that comply with RoHS directives, this tester meets environmental standards while ensuring reliable performance. The durable construction is designed to withstand the rigors of professional use, providing long-term value and dependable operation even in challenging environments. The gold-plated contacts ensure excellent connectivity and signal integrity during testing procedures.

The DB25 RS232 Serial Port Mini Tester proves invaluable across numerous applications where serial communications are still utilized. From maintaining legacy systems in industrial environments to educational settings where students learn about serial protocols, this diagnostic tool simplifies troubleshooting and verification processes. Network administrators, field service technicians, automation specialists, and electronics hobbyists will all appreciate the immediate insights this tester provides when diagnosing serial communication problems in DB25 RS232 systems.
