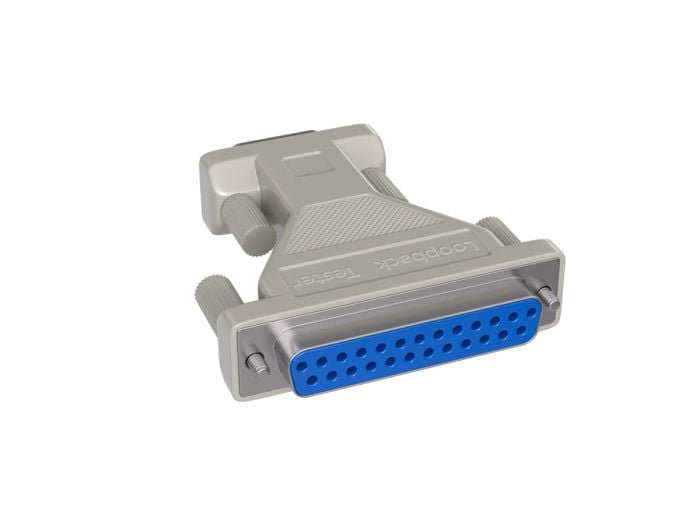

DB9 Female to DB25 Female Serial Loop Back Tester

DB9 Female to DB25 Female Serial Loop Back Tester

The DB9 Female to DB25 Female Serial Loopback Adapter is an essential diagnostic tool designed for professionals who need to efficiently troubleshoot and validate serial port functionality. This specialized adapter creates a signal loopback that allows technicians to verify data transmission capabilities of both DB9 and DB25 serial ports without additional equipment or complex setup procedures.

Engineered with precision, this loopback adapter features high-quality connectors that ensure reliable signal routing between pins, creating the necessary feedback loops for comprehensive port testing. The female connectors on both the DB9 and DB25 sides are constructed with durable materials to withstand repeated connections and disconnections during intensive troubleshooting sessions. This robust design makes it an indispensable tool for IT departments, field technicians, and maintenance personnel who regularly work with serial communication equipment.

The dual-interface compatibility of this adapter addresses one of the most common challenges in serial port diagnostics – having the right testing tool for different port configurations. By incorporating both DB9 and DB25 female connectors into a single compact unit, this loopback adapter eliminates the need to carry multiple testing devices. This design efficiency not only saves space in a technician's toolkit but also reduces equipment costs and streamlines the troubleshooting process across various serial port configurations.

Professional diagnostic capabilities are at the core of this adapter's functionality. When connected to a serial port, it routes output signals back to input pins in a predetermined pattern, allowing diagnostic software to detect improper signal handling, connectivity issues, or port malfunctions. This capability is particularly valuable when diagnosing intermittent connection problems or verifying repairs on systems with serial interfaces. The adapter provides immediate feedback on port functionality, helping technicians quickly determine whether issues originate from the port hardware or from other components in the system.

Environmental responsibility is integrated into the product design, with all materials used in manufacturing complying with the Restriction of Hazardous Substances (RoHS) directive. This compliance ensures the adapter contains no harmful substances such as lead, mercury, or cadmium, making it not only a reliable tool but also an environmentally conscious choice for modern technical environments where regulatory adherence is increasingly important.

The versatility of this serial loopback adapter extends across numerous applications where serial communication remains critical. It proves invaluable for maintaining legacy industrial control systems, servicing point-of-sale equipment, diagnosing medical devices with serial interfaces, troubleshooting telecommunications hardware, and validating custom-built systems that incorporate serial ports. In environments where equipment uptime is crucial, this diagnostic tool helps minimize downtime by enabling fast, accurate identification of serial communication issues.
